Product Details

Description



Features:

·PWM-OptimizedTrenchFET® Power MOSFET
·100% Rg Tested
·Avalanche Tested




Application

·Primary Side Switch In:
− Telecom Power Supplies
− Distributed Power Architectures
− Miniature Power Modules

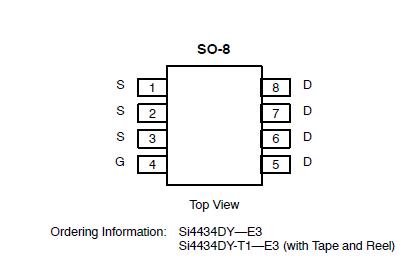

Pinout

Connection Diagram




Specifications

Parameter
Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS 250 V
Gate-Source Voltage VGS ±20
Continuous Drain Current (TJ = 150)a TA = 25 ID 3.0 2.1 A
TA = 70 2.4 1.7
Pulsed Drain Current IDM 30
Continuous Source Current (Diode Conduction)a IS 2.6 1.3
Avalanch Current L = 0.1 mH IAS 13
Single Avalanche Energy L = 0.1 mH EAS 8.4 mJ
Maximum Power Dissipationa TA = 25 PD 3.1 1.56 W
TA = 70 2.0 1.0
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150





Description

N-Channel 250-V (D-S) MOSFET Si4434DY
