SI4486EY

MOSFET 100V 7.9A 3.8W

product image

SI4486EY Picture
See larger image
SeekIC No. : 00166679 Detail

SI4486EY: MOSFET 100V 7.9A 3.8W

SI4486EY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI4486EY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 100 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 7.9 A
Resistance Drain-Source RDS (on) : 25 mOhms Configuration : Single
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Narrow Packaging : Tube

Description

Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Configuration : Single
Mounting Style : SMD/SMT
Drain-Source Breakdown Voltage : 100 V
Maximum Operating Temperature : + 150 C
Packaging : Tube
Resistance Drain-Source RDS (on) : 25 mOhms
Package / Case : SOIC-8 Narrow
Continuous Drain Current : 7.9 A

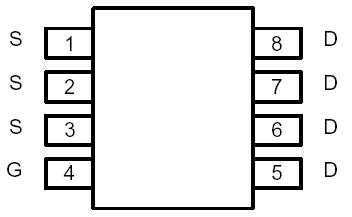

Pinout

Connection Diagram




Specifications

Parameter Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS 100 V
Gate-Source Voltage VGS ±20
Continuous Drain Current (TJ = 175)a TA = 25 ID 7.9 5.4 A
TA = 85 6.1 4.2
Pulsed Drain Current IDM 40
Avalanche Current L = 0 1 mH IAR 30
Repetitive Avalanche Energy (Duty Cycle 1%) EAR 45 mJ
Continuous Source Current (Diode Conduction)a IS 3.1 1.5 A
Maximum Power Dissipationa TA = 25 PD 3.8 1.8 W
TA = 85 2.3 1.1
Operating Junction and Storage Temperature Range TJ, Tstg -55 to 175





Description

N-Channel 100-V (D-S) MOSFET Si4486EY
