Features:

TrenchFET Power MOSFET


Application

· Level Shift
·  Load Switch


Pinout

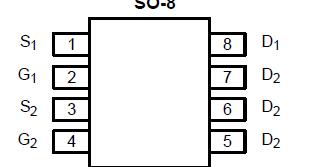

Connection Diagram


Specifications

Parameter Symbol N-Channel P-Channel Unit
10 secs Steady State 10 secs Steady State
Drain-Source Voltage VDS 30 -8 V
Gate-Source Voltage VGS ±20 ±8
Continuous Drain Current (TJ = 150°C)a TA = 25°C ID 8.8 6.5 -4.5 -3.8 A
TA = 70°C 7.0 5.2 -3.6 -3.0
Pulsed Drain Current(10 s Pulse Width) IDM 30 -20
Continuous Source Current (Diode Conduction)a IS 2.0 1.1 -1.2 -0.9
Maximum Power Dissipationa TA = 25°C PD 2.27 1.25 1.38 1.0 W
TA = 70°C 1.45 0.8 0.88 0.64
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150 °C
