Si4511DY

Features: ·TrenchFET® Power MOSFETApplication· Level Shift· Load SwitchPinoutSpecifications Parameter Symbol N-Channel P-Channel Unit 10 secs Steady State 10 secs Steady State Drain-Source Voltage VDS 20 −20 V Gate-Source Voltage VGS ±16 ±12 Continuous Dr...

product image

Si4511DY Picture
See larger image
SeekIC No. : 004490313 Detail

Si4511DY: Features: ·TrenchFET® Power MOSFETApplication· Level Shift· Load SwitchPinoutSpecifications Parameter Symbol N-Channel P-Channel Unit 10 secs Steady State 10 secs Steady State ...

Si4511DY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
Si4511DY
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·TrenchFET® Power MOSFET




Application

· Level Shift
· Load Switch

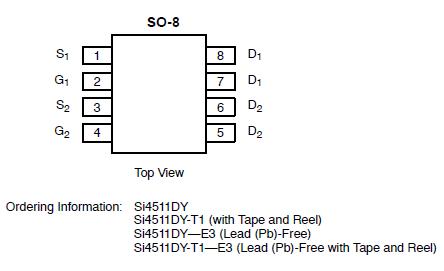

Pinout

Connection Diagram




Specifications

Parameter Symbol N-Channel P-Channel Unit
10 secs Steady State 10 secs Steady State
Drain-Source Voltage VDS 20 −20 V
Gate-Source Voltage VGS ±16 ±12
Continuous Drain Current (TJ = 150)a TA = 25 ID 9.6 7.2 −6.2 −4.6 A
TA = 70 7.7 5.8 −4.9 −3.7
Pulsed Drain Current IDM 40 −40
Continuous Source Current (Diode Conduction)a IS 1.7 0.9 −1.7 0.9
Maximum Power Dissipationa TA = 25 PD 2 1.1 2 1.1 W
TA = 70 1.3 0.7 1.3 0.7
Operating Junction and Storage Temperature Range TJ, Tstg -55 to 150





Description

N- and P-Channel 20-V (D-S) MOSFET Si4511DY
