SI4946EY

MOSFET 60V 4.5A 2.4W

product image

SI4946EY Picture
See larger image
SeekIC No. : 00164499 Detail

SI4946EY: MOSFET 60V 4.5A 2.4W

SI4946EY Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SI4946EY
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 60 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 4.5 A
Resistance Drain-Source RDS (on) : 55 mOhms Configuration : Dual
Maximum Operating Temperature : + 175 C Mounting Style : SMD/SMT
Package / Case : SOIC-8 Narrow

Description

Packaging :
Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Maximum Operating Temperature : + 175 C
Mounting Style : SMD/SMT
Configuration : Dual
Package / Case : SOIC-8 Narrow
Drain-Source Breakdown Voltage : 60 V
Continuous Drain Current : 4.5 A
Resistance Drain-Source RDS (on) : 55 mOhms


Pinout

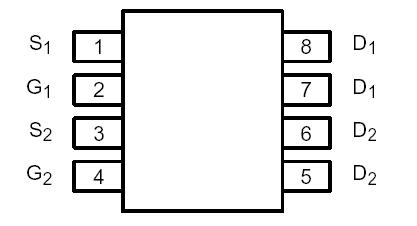

Connection Diagram


Specifications

Parameter Symbol Limit Unit
Drain-Source Voltage VDS 60 V
Gate-Source Voltage VGS ±20
Continuous Drain Current (TJ = 175)a TA = 25 ID 4.5 A
TA = 70 3.8
Pulsed Drain Current IDM 30
Continuous Source Current (Diode Conduction)a IS 2
Maximum Power Dissipationa TA = 25 PD 2.4 W
TA = 70 1.7
Operating Junction and Storage Temperature Range TJ, Tstg -55 to 175
