Product Details

Description



Features:

·TrenchFET® Power MOSFET
· 25-V VGS Provides Extra Head Room for Safe Operation


Application

· Notebook
  - Load Switch
  - Battery Charger Switch

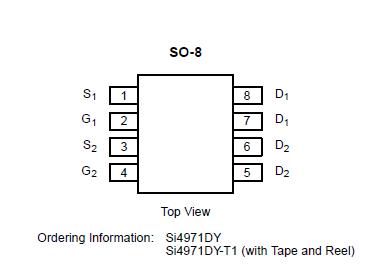

Pinout

Connection Diagram


Specifications

Parameter
Symbol 10 secs Steady State Unit
Drain-Source Voltage VDS −30 V
Gate-Source Voltage VGS ±25
Continuous Drain Current (TJ = 150)a TA = 25 ID -7.2 -5.4 A
TA = 70 -5.7 -4.3
Pulsed Drain Current IDM −30
continuous Source Current (Diode Conduction)a IS −1.7 −0.9
Maximum Power Dissipationa TA = 25 PD 2.0 1.1 W
TA = 70 1.3 0.7
Operating Junction and Storage Temperature Range TJ, Tstg −55 to 150
