Features: ` Selectable output frequencies ranging from 19.44 to 1050 MHz
` Low jitter clock outputs w/jitter generation as low as 0.6 ps rms (50 kHz80 MHz)
` Integrated loop filter with selectable loop bandwidth (30 kHz to 1.3 MHz)
` Four clock inputs w/manual or automatically controlled hitless switching
` Five clock outputs with selectable signal format (LVPECL, LVDS, CML, CMOS)
` Support for ITU G.709 FEC ratios (255/238, 255/237, 255/236)
` LOS alarm outputs
` Digitally-controlled output phase adjust
` Pin-programmable settings
` On-chip voltage regulator for 1.8 or 2.5 V ±10% operation
` Small size: 14 x 14 mm 100-pin TQFP
` Pb-free, RoHS compliant
Application· SONET/SDH OC-48/OC-192 line cards
· GbE/10GbE, 1/2/4/8/10GFC line cards
· ITU G.709 line cards

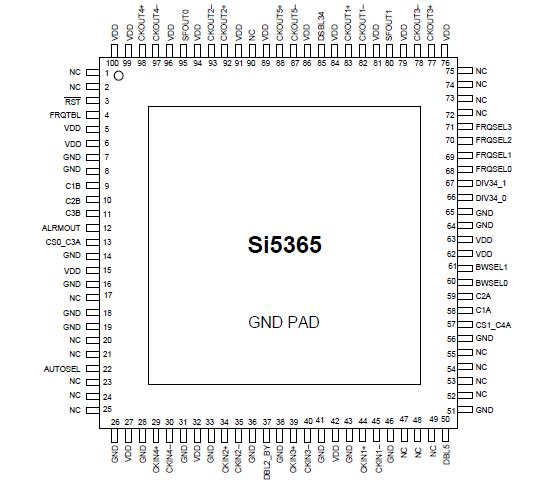

· Test and measurementPinout
Specifications
|
Parameter |
Symbol |
Value |
Unit |
| DC Supply Voltage |
VDD |
0.5 to 2.75 |
V |
| LVCMOS Input Voltage |
VDIG |
0.3 to (VDD + 0.3) |
V |
| Operating Junction Temperature |
TJCT |
55 to 150 |
ºC |
| Storage Temperature Range |
TSTG |
55 to 150 |
ºC |
| ESD HBM Tolerance (100 pF, 1.5 k) |
|
2 |
kV |
| ESD MM Tolerance |
|
200 |
V |
| Latch-Up Tolerance |
|
JESD78 Compliant |
| Note: Permanent device damage may occur if the Absolute Maximum Ratings are exceeded. Functional operation should be restricted to the conditions as specified in the operation sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods of time may affect device reliability. |
DescriptionThe Si5365 is a low jitter, precision clock multiplier for high-speed communication systems, including SONET OC-48/OC-192, Ethernet, and Fibre Channel, in which the application requires clock multiplication without jitter attenuation. The Si5365 accepts four clock inputs ranging from 19.44 to 707 MHz and generates five frequency-multiplied clock outputs ranging from 19.44 to 1050 MHz. The input clock frequency and clock multiplication ratio are selectable from a table of popular SONET, Ethernet, and Fibre Channel rates. The Si5365 is based on Silicon Laboratories' 3rdgeneration DSPLL® technology, which provides anyrate frequency synthesis in a highly integrated PLL solution that eliminates the need for external VCXO and loop filter components. The DSPLL loop bandwidth is digitally programmable, providing jitter performance optimization at the application level. Operating from a single 1.8 or 2.5 V supply, the Si5365 is ideal for providing clock multiplication in high performance timing applications.
Si5365 Data Sheet
