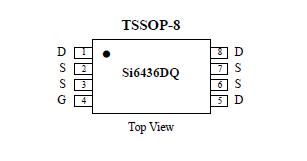

PinoutSpecifications Parameter Symbol N-Channel Unit Drain-Source Voltage VDS 30 V Gate-Source Voltage VGS ±20 Continuous Drain Current (TJ = 150)a TA = 25 ID ±4.4 A TA = 70 ±3.5 Pulsed Drain Current IDM ±30 Continuous Source Current (Diode Conduction)a IS 1...
Si6436DQ: PinoutSpecifications Parameter Symbol N-Channel Unit Drain-Source Voltage VDS 30 V Gate-Source Voltage VGS ±20 Continuous Drain Current (TJ = 150)a TA = 25 ID ±4.4 A TA ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Symbol | N-Channel | Unit | |
Drain-Source Voltage | VDS | 30 | V | |
Gate-Source Voltage | VGS | ±20 | ||
Continuous Drain Current (TJ = 150)a | TA = 25 | ID | ±4.4 | A |
TA = 70 | ±3.5 | |||
Pulsed Drain Current | IDM | ±30 | ||
Continuous Source Current (Diode Conduction)a | IS | 1.7 | ||
Maximum Power Dissipationa | TA = 25 | PD | 1.5 | W |
TA = 70 | 1.0 | |||
Operating Junction and Storage Temperature Range | TJ, Tstg | -55 to 150 | /W |
