Purchase Si9711CY, In-stock Si9711CY From SeekIC.
MFG:SI
Part Number: Si9711CY
MFG: SI
Description: The Si9711CY is a monolithic switch designed to meet the needs of the PC Card interface. The inputs ar...
- Table of contents:
Si9711CY
-
Suppliers
DataSheet
General Description
Si9711CY General Description
The Si9711CY is a monolithic switch designed to meet the needs of the PC Card interface. The inputs are fully CMOS compatible and incorporate all the level shift and interface required to be driven by any CMOS driver. The external inputs can be driven to 3.3-V or 5-V by setting VL at the appropriate level. The switches are low RON and can carry the maximum currents found on the PC Card interface.
The 5-V and 3.3-V switches do not have the parasitic diode found in vertical DMOS power switches.
Low RON is achieved by using MOSFETs driven off the +12-VIN input. All level shifting is built into the Si9711CY.
The Si9711CY is packaged in an SO-16 package and is rated over the commercial temperature range 0 to 70°C.
Si9711CY Maximum Ratings
Voltages Referenced to Ground
VL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
+12 VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 15 V
+5 VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 7 V
+3.3 VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
S1 through S4 (CMOS Inputs) . . . . . . . . . . . . . . . . . . . . . . VL + 0.5 V
IOUT VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 mA
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
VPP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 15 V
All Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V
IOUT VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5 A
PD Max: (TA = 25°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 710 mW
(TA = 70°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390 mW
Junction Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125°C
Thermal Ratings
RJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140°C/W
VL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
+12 VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 15 V
+5 VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 7 V
+3.3 VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
S1 through S4 (CMOS Inputs) . . . . . . . . . . . . . . . . . . . . . . VL + 0.5 V
IOUT VPP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300 mA
VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
VPP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 15 V
All Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V
IOUT VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5 A
PD Max: (TA = 25°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 710 mW
(TA = 70°C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390 mW
Junction Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125°C
Thermal Ratings
RJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140°C/W
Si9711CY Features
• Single SO-16 Package
• CMOS Inputs with Hysteresis
• Extremely Low RON
• Reverse Blocking Switches
• HiZ Outputs in the Off-State
• Low Power Consumption
• Safe Power-Up
• CMOS Inputs with Hysteresis
• Extremely Low RON
• Reverse Blocking Switches
• HiZ Outputs in the Off-State
• Low Power Consumption
• Safe Power-Up

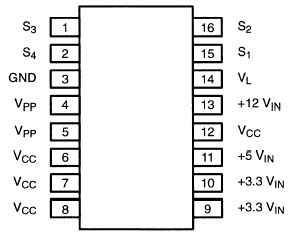

Si9711CY Connection Diagram
SI9711CY
PDF/DataSheet Download
- Datasheet: SI9711CY
- File Size: 194501 KB
- Manufacturer: VISAY [Vishay Siliconix]
- Click here to Download
