Product Details

Description

Features:

·TrenchFET^®Power MOSFET

Pinout

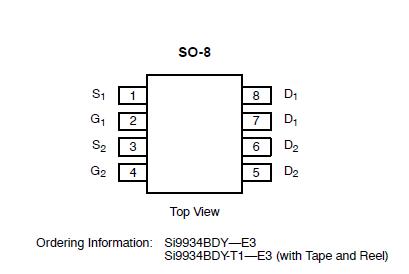

Connection Diagram

Specifications

Parameter		Symbol	10 secs	Steady State	Unit
Drain-Source Voltage		V_DS	−12		V
Gate-Source Voltage		V_GS	±8
Continuous Drain Current (T_J= 150)^a	T_A = 25	I_D	−6.4	−4.8	A
	T_A = 70		−5.1	−3.9
Pulsed Drain Current		I_DM	−20
continuous Source Current (Diode Conduction)^a		I_S	−1.7	−0.9
Maximum Power Dissipation^a	T_A= 25	P_D	2.0	1.1	W
	T_A = 70		1.3	0.7
Operating Junction and Storage Temperature Range		T_J, T_stg	−55 to 150
