SiP825

Features: · Precision Power Supply Monitoring with ·1.5% Accuracy· Low Quiescent Current: 3 ·A max.· Low Threshold Voltage Temperature Coefficient: 100 ppm max.· GuaranteedRESET Valid Dow to VCC = 1 V· Seven Reset Threshold Options· Small SOT23-5 Packages· No External Components· Power Supply Tran...

product image

SiP825 Picture
See larger image
SeekIC No. : 004491495 Detail

SiP825: Features: · Precision Power Supply Monitoring with ·1.5% Accuracy· Low Quiescent Current: 3 ·A max.· Low Threshold Voltage Temperature Coefficient: 100 ppm max.· GuaranteedRESET Valid Dow to VCC = 1...

SiP825 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SiP825
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Precision Power Supply Monitoring with ·1.5% Accuracy
· Low Quiescent Current: 3 ·A max.
· Low Threshold Voltage Temperature Coefficient: 100 ppm max.
· Guaranteed RESET Valid Dow to VCC = 1 V
· Seven Reset Threshold Options
· Small SOT23-5 Packages
· No External Components
· Power Supply Transient Immunity


Application

` Portable Intelligent Electronics
` Computers and Controllers
` Automotive Electronics
` Critical P/C Power Supply Monitoring


Pinout

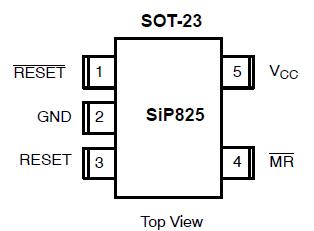

Connection Diagram




Specifications

Parameter
Symbol
Limit
Unit
Supply Voltage
VCC
−0.3 to 6.0
V
All Other Pins
VMAX
−0.3 to (VCC + 0.3)
Input/Output Current, All Pins
IIN(max)
20
mA
Operating Temperature Range
TA
−40 to 85
Storage Temperature Range
Tstg
−65 to 150
Junction Temperature Range
TJ
−40 to 125
Power Dissipation (TA 70)
SOT-23 (Derate 4 mW/ above 70)
RD
310
mW

Notes
a. Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device.




Description

The SiP823/SiP824/SiP825 series are Processor  supervisory circuits in a 5-pin SOT23 package, that combine the functions of power supply and Processor monitoring. If the power supply voltage drops, or has been, below a safe level or the Processor shows signs of problematic inactivity, the circuit will generate a reset signal at it's output.

The SiP823 and SiP825 have an input to accommodate manual reset.Seven pre-programmed reset threshold voltage levels are available as standard options.Specially configured options are available upon request, allowing for further customization of reset voltage, reset time-out, and watchdog time-out periods.

The SiP823 has a reset output that is "active low" and the  SiP824 and SiP825 have complementary outputs for both "active high" and "active low" resets. Both output drives are push/pull configurations.Space saving SOT23-5 packages and low quiescent current make this family of products ideally suited for portable battery operated equipment.

These circuits SiP825 fully ignore fast negative VCC transients and have valid reset output signals with power supply levels down to 1 V.
