Product Details

Description



Features:

` High speed access time: 50/70/85/100ns
` Power supply current : Operating :35mA(max)
                                         Standby : 5uA
` Power supply : 2.7V to 3.6V
` Fully static operation No clock or refreshing required
` All inputs and outputs directly LVTTL compatible
` Common I/O capability
` Data retention voltage : 1.5V (min)
` Available packages :28-pin SOP ,TSOP-I (8x13.4mm forward type and reverse type).
` Operating temperature :
- 0 ~ +70 °C
- -40 ~ +85 °C

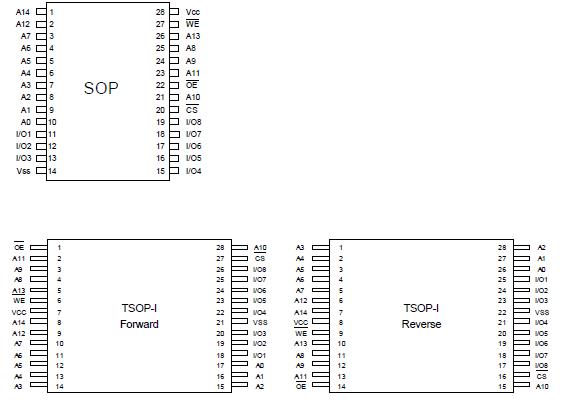

Pinout

Connection Diagram


Specifications

PARAMETER
RATING
UNIT
Supply Voltage to Vss Potential
-0.5 to 4.6
V
Inputs to Vss Potential
-0.5 to Vcc+0.5
V
Power Dissipation
0.7
W
Storage Temperature
-60 to +150
mA








Description

T15V256A is a low power and low voltage CMOS static RAM. organized as 32,768 x 8 bits that operates on a 2.7V to 3.6V power supply. Data retention is guaranteed at a power supply voltage as low as 1.5V. T15V256A is packaged in a standard 28-pin SOP or TSOP-I forward and reverse type.
