T6816

Features: • Six High-side and Six Low-side Drivers• Outputs Freely Configurable as Switch, Half Bridge or Hbridge• Capable to Switch all Kinds of Loads such as DC Motors, Bulbs, Resistors, Capacitors and Inductors• 0.6 A Continuous Current per Switch• Low-side: RDSon ...

product image

T6816 Picture
See larger image
SeekIC No. : 004511357 Detail

T6816: Features: • Six High-side and Six Low-side Drivers• Outputs Freely Configurable as Switch, Half Bridge or Hbridge• Capable to Switch all Kinds of Loads such as DC Motors, Bulbs, Re...

T6816 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
T6816
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Six High-side and Six Low-side Drivers
• Outputs Freely Configurable as Switch, Half Bridge or Hbridge
• Capable to Switch all Kinds of Loads such as DC Motors, Bulbs, Resistors, Capacitors and Inductors
• 0.6 A Continuous Current per Switch
• Low-side: RDSon < 1.5  versus Total Temperature Range
• High-side: RDSon < 2.0  versus Total Temperature Range
• Very Low Quiescent Current Is < 20 A in Standby Mode
• Outputs Short-circuit Protected
• Overtemperature Prewarning and Protection
• Undervoltage Protection
• Various Diagnosis Functions such as Shorted Output, Open Load, Overtemperature and Power Supply Fail
• Serial Data Interface
• Operation Voltage up to 40 V
• Daisy Chaining Possible
• SO28 Power Package

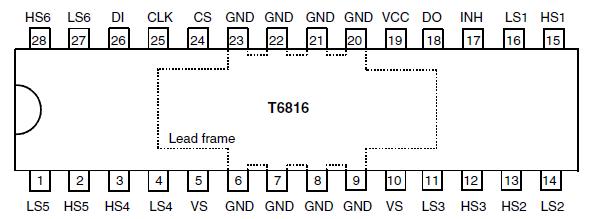

Pinout

Connection Diagram


Specifications

Parameter Symbol Value Unit
Supply voltage Pins 5, 10 VVS -0.3 to +40 V
Supply voltage tt0.5 s; ISu-2 A Pins 5, 10 VVS -1 V
Supply voltage difference |VS_Pin5 - VS_Pin10| DVVS 150 mV
Supply current Pins 5, 10 IVS 1.4 A
Supply current t < 200 ms Pins 5, 10 IVS 2.6 A
Logic supply voltage Pin 19 VVCC -0.3 to +7 V
Input voltage Pin 17 VINH -0.3 to +17 V
Logic input voltage Pins 24 to 26 VDI, VCLK, VCS -0.3 to VVCC +0.3 V
Logic output voltage Pin 18 VDO -0.3 to VVCC +0.3 V
Input current Pins 17, 24 to 26 IINH, IDI, ICLK, ICS -10 to +10 mA
Output current Pin 18 IDO -10 to +10 mA
Output current Pins 1 to 4, 11 to 16,
Pins 27 and 28		 ILS1 to ILS6
IHS1 to IHS6		 Internallimited, seeoutput specification
Reverse conducting current Pins 2, 3, 12, 13,
15, (tPulse = 150 ms) 28 towards Pins 5, 10		 IHS1 to IHS6 17 A
Junction temperature range Tj -40 to +150
Storage temperature range TSTG -55 to +150



Description

The T6816 is a fully protected driver interface designed in 0.8 m BCDMOS technology. It is especially suitable for truck or bus applications and the industrial 24-V supply. It controls up to 12 different loads via a 16-bit dataword.

Each of the six high-side and six low-side drivers is capable to drive currents up to 600 mA. The T6816 are freely configurable and can be controlled separately from a standard serial data interface. Therefore, all kinds of loads such as bulbs, resistors, capacitors and inductors can be combined. The IC is also designed to easily build Hbridges to drive DC motors in motion-control applications.

Protection is guaranteed in terms of short-circuit conditions, overtemperature and undervoltage. Various diagnosis functions and a very low quiescent current in standby mode open a wide range of applications.

Overvoltage protection of T6816 is matched to the requirements of the 24-V industrial voltage and the 24-V automotive supply. Automotive qualification referring to conducted interferences, EMC protection and 2 kV ESD protection gives added value and enhanced quality for the exacting requirements of automotive applications.
