TC4431

Features:

* High Peak Output Current 1.5A
* Wide Operating Range
- 4.5V to 30V
* High Capacitive Load Drive Capability 1000pF in 25nsec
* Short Delay Times <78nsec Typ.
* Low Supply Current:
- With Logic "1" Input 2.5mA
- With Logic "0" Input 300A
* Low Output Impedance 7?
* Latch-Up Protected: Will Withstand >300mAReverse Current
* ESD Protected 4kV

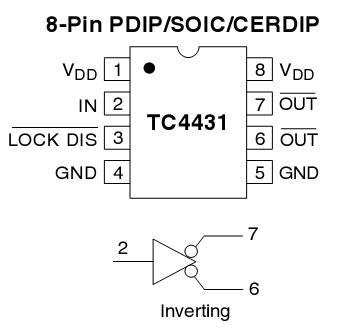

Pinout






Specifications

Parameter Name	Value
Power	Single
Peak Output Current (mA)	1500
Output Resistance (RH/RL)(Max. @ 25°C)	10/10
Max. Supply Voltage (V)	30
Input/Output Delay (td1, td2)1 (ns)	80/90
Configuration	Inverting
Description	High-Side/Low-Side MOSFET Drivers
Operating Temp. Range (°C)	-40 to 125

Supply Voltage....................................................... 36V
Input Voltage (Note 1)....................V_DD + 0.3V to GND
Package Power Dissipation (T_A 70°C)
PDIP........................................................ 730mW
CERDIP................................................... 800mW
SOIC........................................................ 470mW
Package Thermal Resistance
CERDIP R_J-A........................................ 150°C/W
CERDIP R_J-C ......................................... 50°C/W
PDIP R_J-A ............................................. 125°C/W
PDIP R_J-C ............................................... 42°C/W
SOIC R_J-A ............................................250°C/W
SOIC R_J-C .............................................. 75°C/W
Operating Temperature Range
C Version.........................................0°C to +70°C
E Version..................................... -40°C to +85°C
Storage Temperature Range............. -65°C to +150°C

*Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions above those indicated in the operation sections of the specifications is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability.




Description

The TC4431/4432 are 30V CMOS buffer/drivers suitable for use in high-side driver applications. They will not latch up under any conditions within their power and voltage ratings. They can accept, without damage or logic upset, up to 300mA of reverse current (of either polarity) being forced back into their outputs. All terminals of TC4431 are fully protected against up to 4 kV of electrostatic discharge. Under-voltage lockout circuitry forces the output to a "low" state when the input supply voltage drops below 7V. For operation in lower voltages, disable the lockout and start-up circuit by grounding pin 3(LOCK DIS); for all other situations, pin 3 (LOCK DIS) of TC4431 should be left floating. The under-voltage lockout and start-up circuit gives brown out protection when driving MOSFETS.
