TC901

Total Supply Voltage (VDD to VSS) ..................... .....+36V
Input Voltage .......................(VDD+ 0.3V) to (VSS 0.3V)
Current Into Any Pin .............................................. 10mA
While Operating .....................................................100µA
Storage Temperature Range ............ 65°C to +150°C
Lead Temperature (Soldering, 10 sec) ................+300°C
Operating Temperature Range
    C Device ............................................ 0°C to +70°C
Package Power Dissipation (TA  70°C)
    Plastic DIP ......................................................730mW
    Plastic SOIC ...................................................470mW

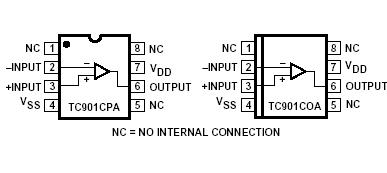

The TC901 is a monolithic, auto-zeroed operational amplifier. It is a second-generation design of the TC91X CMOS chopper-stabilized op-amps with on-chip capacitors. Elimination of the external capacitors allows the designer
to increase reliability, lower cost, and simplify designby lowering parts count.

Since the TC901 is an auto-zeroing op amp, input offset voltage is very low. More important, there is almost zero drift with time. This eliminates production line adjustments, as well as periodic calibration.
