Part Number: TCM5020ALU









Description: The TCM5020ALU is a CMOS b/w (= black and white) image sensor that meets with CIF format. It enables a...


Urgent Purchase

TCM5020ALU General Description


The TCM5020ALU is a CMOS b/w (= black and white) image sensor that meets with CIF format. It enables all pixel signals to be output in sequence each 1/30 s. (progressive scanning) This element is equipped with 290 vertical and 367 horizontal signal pixels, and the image size meets with 1/7 inch optical format. The package with lens is applicable. This small lens unit package realize small-scaled system.

Use of the CMOS process enables low power-consumption operations with a single power voltage driving. It is perfect for use as an image input device for mobile equipments.

TCM5020ALU Maximum Ratings

Characteristics
Symbol
Rating
Uni
Power supply voltage
VDD
−0.5~4.2
V
Input voltage
VIN
−0.5~ VDD + 0.5
V
Input protection diode current
IIN
±20
°C
Storage temperature
Tstg
−30~60
°C

TCM5020ALU Features

• Optical size: 1/7 inch optical format
• Total pixel numbers: 382 (H) * 306 (V)
• Signal pixel numbers: 367 (H) * 290 (V)
• Pixel pitch: 5.6 m (H) * 5.6 m (V) (square pixel)
• Image size: 2.055 mm (H) * 1.624 mm (V)
• Package: 16-pin Optical lens unit
• Frame frequency: 30 Hz
• Power voltage: 2.8 V
• Additional functions: Variable electronic shutter (1/30 to 1/4500 s)
                                    Inverse top-down read-out

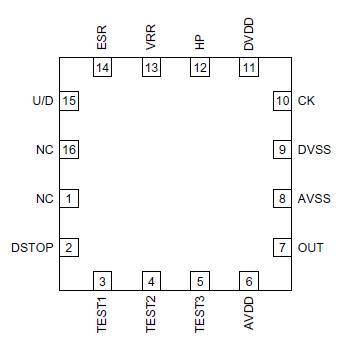

TCM5020ALU Connection Diagram

TCM5020ALU Connection Diagram
