General Description
TCM5023ALU General Description
The TCM5023ALU is a CMOS color image sensor that meets with CIF format. It enables all pixel signals to be output in sequence each 1/30 s. (progressive scanning) This element is equipped with 290 vertical and 367 horizontal signal pixels, and the image size meets with 1/7 inch optical format. The package with lens is applicable. This small lens unit package realize small-scaled system.
Use of the CMOS process enables low power-consumption operations with a single power voltage driving. It also provides excellent color reproduction through its primary color filter, and it is perfect for use as an image input device for mobile equipments, PC cameras and other forms of multi-media.
TCM5023ALU Maximum Ratings
|
Characteristics |
Symbol |
Rating |
Uni |
| Power supply voltage |
VDD |
−0.5~4.2 |
V |
| Input voltage |
VIN |
−0.5~ VDD + 0.5 |
V |
| Input protection diode current |
IIN |
±20 |
°C |
| Storage temperature |
Tstg |
−30~60 |
°C |
TCM5023ALU Features
• Optical size: 1/7 inch optical format
• Total pixel numbers: 382 (H) * 306 (V)
• Signal pixel numbers: 367 (H) * 290 (V)
• Pixel pitch: 5.6 m (H) * 5.6 m (V) (square pixel)
• Image size: 2.055 mm (H) * 1.624 mm (V)
• Package: 16-pin Optical lens unit
• Color filter: Primary color filter, Bayer arrangement (G check, R/B line in sequence)
• Frame frequency: 30 Hz
• Power voltage: 2.8 V
• Additional functions: Variable electronic shutter (1/30 to 1/4500 s)
Inverse top-down read-out
• Total pixel numbers: 382 (H) * 306 (V)
• Signal pixel numbers: 367 (H) * 290 (V)
• Pixel pitch: 5.6 m (H) * 5.6 m (V) (square pixel)
• Image size: 2.055 mm (H) * 1.624 mm (V)
• Package: 16-pin Optical lens unit
• Color filter: Primary color filter, Bayer arrangement (G check, R/B line in sequence)
• Frame frequency: 30 Hz
• Power voltage: 2.8 V
• Additional functions: Variable electronic shutter (1/30 to 1/4500 s)
Inverse top-down read-out

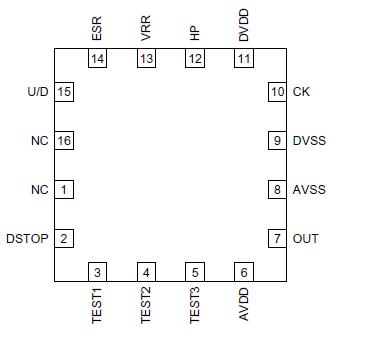

TCM5023ALU Connection Diagram
TCM5023ALU
PDF/DataSheet Download
- Datasheet: TCM5023ALU
- File Size: 266865 KB
- Manufacturer: Toshiba
