Purchase TD62064AP, In-stock TD62064AP From SeekIC.
MFG:TOSHIBA Package Cooled:DIP
- Table of contents:
TD62064AP
-
Suppliers
DataSheet
General Description
TD62064AP Maximum Ratings
| CHARACTERISTIC |
SYMBOL |
RATING |
UNIT | |
| Output Sustaining Voltage |
P, F AP, AF |
VCE (SUS) |
−0.5~35 −0.5~50 |
V |
| Output Current |
IOUT |
1.5 |
A / ch | |
| Input Voltage |
IIN |
50 |
mA | |
| Input Current |
VIN |
−0.5~17 |
V | |
| Clamp Diode Reverse Voltage |
P, F AP, AF |
VR (Note 1) |
35 50 |
V |
| Clamp Diode Forward Current |
IF (Note 1) |
1.5 |
A / ch | |
| Isolated Voltage | P, F AP, AF |
VSUB (Note 2) |
35 50 |
V |
| Power Dissipation | P,AP F, AF |
PD |
1.47 / 2.7 (Note 3) 0.9 / 1.4 (Note 4) |
W |
| Operating Temperature |
Topr |
−40~85 |
°C | |
| Storage Temperature |
Tstg |
−55~150 |
°C | |
Note 2: TD62074P / AP / F / AF
Note 3: On Glass Epoxy PCB (50 × 50 × 1.6 mm Cu 50%)
Note 4: On Glass Epoxy PCB (60 × 30 × 1.6 mm Cu 30%)
TD62064AP Features
·Output current (single output) 1.5 A (Max)
·High sustaining voltage output 35 V (Min) (TD62064P / F, 074P / F) 50 V (Min) (TD62064AP / AF, 074AP / AF)
·Output clamp diodes : TD62064P / AP / F / AF
·Isolated darlington array : TD62074P / AP / F / AF
·Input compatible with TTL and 5 V CMOS
·GND and SUB terminal = heat sink
·Package type−P, AP : DIP−16 pin
·Package type−F, AF : HSOP−16 pin
·High sustaining voltage output 35 V (Min) (TD62064P / F, 074P / F) 50 V (Min) (TD62064AP / AF, 074AP / AF)
·Output clamp diodes : TD62064P / AP / F / AF
·Isolated darlington array : TD62074P / AP / F / AF
·Input compatible with TTL and 5 V CMOS
·GND and SUB terminal = heat sink
·Package type−P, AP : DIP−16 pin
·Package type−F, AF : HSOP−16 pin

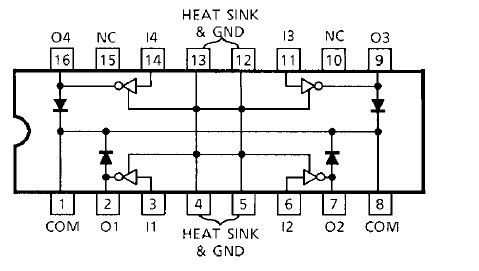

TD62064AP Connection Diagram
TD62064AP
PDF/DataSheet Download
- Datasheet: TD62064AP
- File Size: 353678 KB
- Manufacturer: TOSHIBA [Toshiba Semiconductor]
- Click here to Download
