TDA7296S

Common Mode Rejection Ratio (Min) :
Supply Current :
Packaging : Tube
Maximum Operating Temperature : + 70 C
THD plus Noise : 0.01 %
Mounting Style : Through Hole
Output Power : 60 W
Output Type : 1-Channel Mono
Product : Class-AB
Available Set Gain : 80 dB
Maximum Power Dissipation : 50000 mW
Package / Case : Multiwatt-15
Operating Supply Voltage : 35 V


Features:

VERY HIGH OPERATING VOLTAGE RANGE (±30V)
DMOS POWER STAGE
HIGH OUTPUT POWER (THD = 10%, UP TO 60W)
MUTING/STAND-BY FUNCTIONS
NO SWITCH ON/OFF NOISE
VERY LOWDISTORTION
VERY LOWNOISE
SHORT CIRCUIT PROTECTION
THERMAL SHUTDOWN
CLIP DETECTOR
MODULARITY (MORE DEVICES CAN BE EASILY CONNECTED IN PARALLEL TO DRIVE VERY LOW IMPEDANCES)

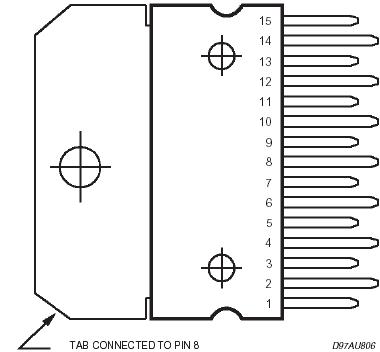

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage (No Signal)	±35	V
V1	VSTAND-BY GND Voltage Referred to -VS (pin 8)	60	V
V2	Input Voltage (inverting) Referred to -VS	60	V
V2 - V3	Maximum Differential Inputs	±30	V
V3	Input Voltage (non inverting) Referred to -VS	60	V
V4	Signal GND Voltage Referred to -VS	60	V
V5	Clip Detector Voltage Referred to -VS	60	V
V6	Bootstrap Voltage Referred to -VS	60	V
V9	Stand-by Voltage Referred to -VS	60	V
V10	Mute Voltage Referred to -VS	60	V
V11	Buffer Voltage Referred to -VS	60	V
V12	Bootstrap Loader Voltage Referred to -VS	60	V
IO	Output Peak Current	10	A
Ptot	Power Dissipation Tcase= 70°C	50	W
Top	Operating Ambient Temperature Range	0 to 70	°C
Tstg,Tj	Storage and Junction Temperature	150	°C

Description

   The TDA7296S is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4W and 8W loads.

   The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises. Parallel mode is made possible by connecting more device through of pin11. High output power can be delivered to very low impedance loads, so optimizing the thermal dissipation of the TDA7296S.
