TDA7382

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Output Power : 30 W
Product : Class-AB
THD plus Noise : 0.04 %
Output Type : 4-Channel Stereo
Available Set Gain : 26 dB
Maximum Power Dissipation : 80000 mW
Package / Case : FLEXIWATT-25
Operating Supply Voltage : 50 V
Supply Current : 5.5 A


Features:

*HIGH OUTPUT POWER CAPABILITY:
4 x30W max./4  EIAJ
4 x22W/4 @14.4V,1KHz,10%
4 x18.5W/4  @ 13.2V,1KHz, 10%
*CLIPPING DETECTOR (THD = 10%)
*LOW DISTORTION
*LOW OUTPUT NOISE
*ST-BY FUNCTION
*MUTE FUNCTION
*AUTOMUTE AT MIN.SUPPLY VOL TAGE DETECTION
*LOW EXTERNAL COMPONENT COUNT:
INTERNALLY FIXED GAIN(26dB)
NO EXTERNAL COMPENSATION
NO BOOTS TRAP CAP ACITORS

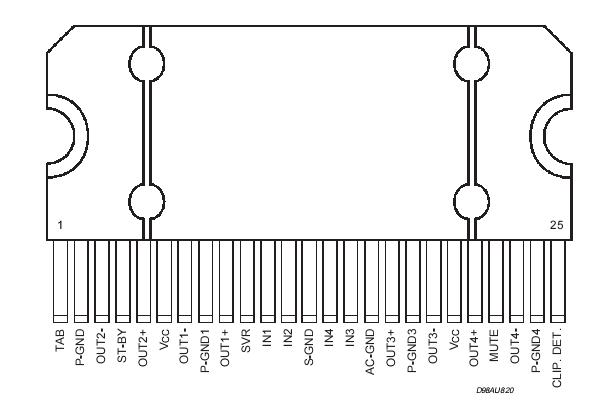

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Operating Supply Voltage	18	V
VCC(DC)	DC Supply Voltage	28	V
VCC(pk)	Peak Supply Voltage (t= 50ms)	50	V
IO	Output Peak Current:
	Repetitive (Duty Cycle 10% at f= 10Hz)	4.5	A
	Non Repetitive(t = 100s)	5.5	A
Ptot	Power dissipation, (Tcase =70)	80	W
Tj	Junction Temperature	150
Tstg	Storage Temperature	55 to150

Description

The TDA7382 is a new technology class AB Audio Power Amplifier in Flexiwatt 25 package designedforhighendcar radio applications.
Thanks to the fully complementary PNP/NPN output configuration the TDA7382 allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced components count allows very compact sets. The on-board clipping detector simplifies gain compression operations.
