TDA7391PD

Mounting Style : SMD/SMT
Packaging : Tube
Maximum Operating Temperature : + 150 C
Common Mode Rejection Ratio (Min) : 65 dB
Output Power : 40 W
THD plus Noise : 0.06 %
Available Set Gain : 30 dB
Output Type : 1-Channel Mono
Operating Supply Voltage : 9 V, 12 V, 15 V
Product : Class-AB
Supply Current : 6 A
Maximum Power Dissipation : 32000 mW
Package / Case : PowerSO-20


Features:

*HIGH POWER CAPABILITY:
40W/3.2 EIAJ
32W/3.2@V_S =14.4V,f = 1KHz,d =10%
26W/4@V_S =14.4V,f =1KHz,d =10%
*DIFFERENTIAL INPUTS (EITHER SINGLE
ENDED OR DIFFERENTIAL INPUT SIGNAL
ARE ACCEPTED)
*MINIMUM EXTERNALCOMPONENT COUNT:
- NO BOOTSTRAP CAPACITORS
- NO BOUCHEROT CELLS
- INTERNALLY FIXED GAIN(30dB)
- NO SVR CAPACITOR
*ST.-BY FUNCTION (CMOS COMPATIBLE)
*PROGRAMMABLE TURN-ON/OFF DELAY
*NO AUDIBLE POP DURING MUTE AND ST-BY OPERATIONS

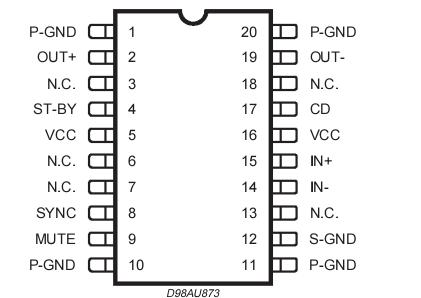

Pinout




Specifications

Symbol	Parameter	TestConditions	Unit
VS	DC Supply Voltage	28	V
VOP	Operating Supply Voltage	18	V
VPEAK	Peak Supply Voltage (t = 50ms)	50	V
Io	Output PeakCurrent repetitive(f > 10Hz)	4.5	A
	Output PeakCurrent non repetitive	6	A
Ptot	Power Dissipation(Tcase = 85°C)	32	W
Tstg,TJ	Storageand Junction TemperatureRange	-40 to +150

Description

The TDA7391PD is a BRIDGE class AB audio power amplifier specially intended for car radio High Power applications.
The high power capability together with the possibility to operate either in DIFFERENTIAL INPUT MODE or SINGLE ENDED INPUT MODE makes
it suitable for boosters and high end car radio equipments.
The exclusive of the TDA7391PD fully complementary output stage and the internal fixed gain configuration drop the external component count.
The on board clipping detector allows easy implementation of gain compression systems.


Parameters:

Technical/Catalog Information	TDA7391PD
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-20 Exposed Bottom Pad
Type	Class AB
Output Type	1-Channel (Mono)
Voltage - Supply	8 V ~ 18 V
Packaging	Tube
Features	Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	40W x 1 @ 3.2 Ohm
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA7391PD TDA7391PD 497 3975 5 ND 49739755ND 497-3975-5
