TDA7419

Output Power :
Available Set Gain :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Packaging : Tube
Maximum Operating Temperature : + 85 C
THD plus Noise : 0.01 %
Output Type : 1-Channel Mono
Product : Audio Analog Processor
Operating Supply Voltage : 8.5 V
Supply Current : 35 mA
Package / Case : SOIC-28
Common Mode Rejection Ratio (Min) : 45 dB


Features:

4 STEREO INPUTS
SOFT STEP VOLUME
BASS, MIDDLE, TREBLE AND LOUDNESS
DIRECT MUTE AND SOFTMUTE
FOUR INDEPENDENT SPEAKER OUTPUTS
SUB WOOFER OUTPUT
SOFT STEP SPEAKER/SUBWOOFER
    CONTROL
7 BANDS SPECTRUM ANALYZER
DIGITAL CONTROL:
   I ² C-BUS INTERFACE

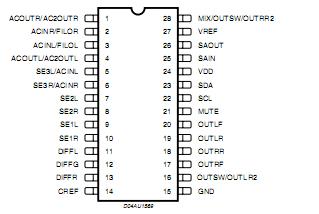

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	10.5	V
Tamb	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to +150	°C

Description

The TDA7419 is a high performance signal processor specifically designed for car radio applications. The TDA7419 includes a high performance audiopr ocessor with fully integrated audio filters.  The digital control allows programming in a wide range of filter characteristics. By the use of BICMOS-process and linear signal processing low distortion and low noise are obtained.
