TDA7449

Operating Supply Voltage :
Supply Current :
Packaging : Tube
Operating Temperature Range : + 70 C
Mounting Style : Through Hole
Package / Case : PDIP-20


Features:

*INPUT MULTIPLEXER
   - 2 STEREO INPUTS
   - SELECTABLEINPUT GAIN FOR OPTIMAL
   ADAPTATIONTO DIFFERENT SOURCES
*ONE STEREO OUTPUT
*TREBLE, AND BASS CONTROL IN 2.0dB
   STEPS
*VOLUMECONTROL IN 1.0dB STEPS
*TWO SPEAKER ATTENUATORS:
   - TWO INDEPENDENTSPEAKERCONTROL
   IN 1.0dBSTEPS FOR BALANCEFACILITY
   - INDEPENDENT MUTE FUNCTION
*ALL FUNCTION ARE PROGRAMMABLE VIA
   SERIAL BUS

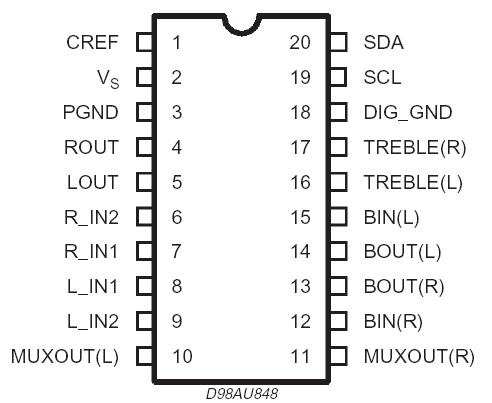

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Operating Supply Voltage	10.5	V
Tamb	Operating Ambient Temperature	-10 to 85	°C
Tstg	Storage Temperature Range	-55 to 150	°C



Description

The TDA7449 is a volume tone (bass and treble) balance (Left/Right) processor for quality audio applications in TV systems.

Selectable input gain is provided. Control of all the functions is accomplished by serial bus.

The AC signal setting of the TDA7449 is obtained by resistor networks and switches combined with operational amplifiers.

Thanks to the used BIPOLAR/CMOS Technology, Low Distortion, Low Noise and DC stepping are obtained.


Parameters:

Technical/Catalog Information	TDA7449
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Mounting Type	Through Hole
Package / Case	20-DIP (300 mil)
Type	Audio Processor
Packaging	Tube
Applications	TV
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7449 TDA7449 497 3672 ND 4973672ND 497-3672
