Common Mode Rejection Ratio (Min)
:
Packaging
: Tube
Maximum Operating Temperature
: + 150 C
Mounting Style
: Through Hole
Output Power
: 60 W
Operating Supply Voltage
: 9 V, 12 V, 15 V
Product
: Class-AB
Output Type
: 4-Channel Stereo
Available Set Gain
: 26 dB
Package / Case
: FLEXIWATT-25
THD plus Noise
: 0.15 %
Maximum Power Dissipation
: 86000 mW
Supply Current
: 8 A
Features: *HIGH OUTPUT POWER CAPABILITY:
4 x40W/4 MAX.
4 x35W/4 EIAJ.
4 x25W/4 @14.4V,1KHz,10%
4 x60W/2 MAX.
2 DRIVINGCAPABILITY
*DUAL MODE OPERATING EXTERNALLY
PRESETTABLE: CONVENTIONAL CLASS A-B MODE,HIGH EFFICIENCY MODE
*LOW EXTERNAL COMPONENTS COUNT:
NO BOOTSTRAP CAPACITORS
NO EXTERNAL COMPENSATION
INTERNALLY FIXED GAIN(26dB)
*CLIPPING DETECTOR
*ST-BY FUNCTION (CMOSCOMPATIBLE)
*MUTE FUNCTION (CMOSCOMPATIBLE)
*AUTOMUTEAT MINIMUMSUPPLY
VOL TAGE DETECTION

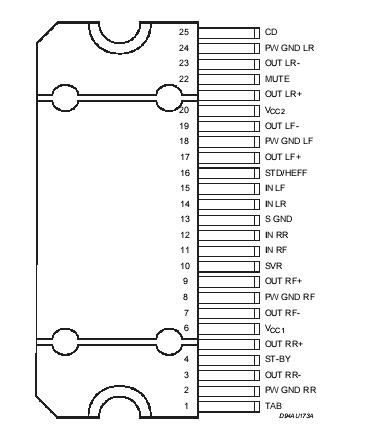

*LOW RADIATIONPinout
Specifications
| Symbol |
Parameter |
Value |
Unit |
| Vop |
Operating Supply Voltage |
18 |
V |
| VS |
DC Supply Voltage |
28 |
V |
| Vpeak |
Peak Supply Voltage (for t = 50ms) |
40 |
V |
| IO |
Output PeakCurrent (notrepetitive t = 100s) |
8 |
A |
| IO |
Output PeakCurrent (repetitivef > 10Hz) |
6 |
A |
| Ptot |
Power dissipation, Tcase =70
|
86 |
W |
| Tstg |
Storage Temperature |
55 to150 |
|
DescriptionThe TDA7454 is a new BCD technology QUAD BRIDGE type of car radio amplifier in Flexiwatt25 package specially intended for car radio applications.
Among the features, its superior efficiency performance coming from the internal exclusive structure, makes TDA7454 the most suitable device to simplify the thermal management in high power sets. The dissipated output power under average listening condition is in fact reduced up to 50% when compared to the level provided by conventional class AB solutions.
Parameters: | Technical/Catalog Information | TDA7454 |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | 25-Flexiwatt (bent and staggered leads) |
| Type | Class AB |
| Output Type | 4-Channel (Quad) |
| Voltage - Supply | 8 V ~ 18 V |
| Packaging | Tube |
| Features | Mute, Short-Circuit and Thermal Protection, Standby |
| Max Output Power x Channels @ Load | 60W x 4 @ 2 Ohm |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | TDA7454
TDA7454
497 2179 5 ND
49721795ND
497-2179-5
|
