Product Details

Description

Features:

· Voltage Controlled Amplifier (VCA) noise reduction circuit
· Stereo or mono selectable at the AF outputs
· Stereo pilot PLL circuit with ceramic resonator
· Automatic pilot cancellation
· Automatic Volume Level (AVL) control (+6 to -15 dB)
· I²C-bus transceiver.

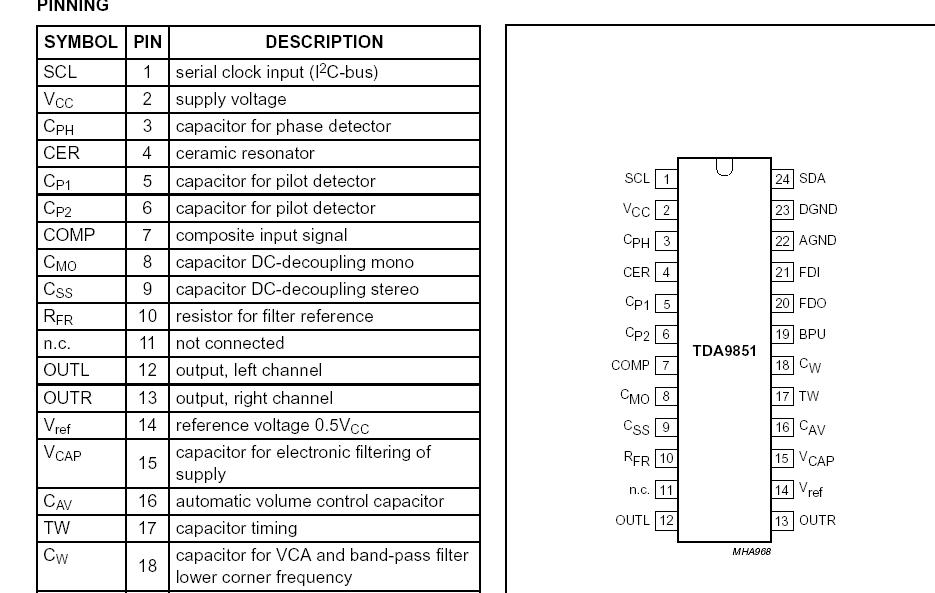

Pinout

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CC	supply voltage		0	9.9	V
V_SDA, V_SCL	voltage of SDA and SCL to GND	V_CC< 9 V	0	V_CC	V
V_SDA, V_SCL	voltage of SDA and SCL to GND	V_CC 9V	0	9	V
V_n	voltage of all other pins to GND		0	V_CC	V
T_amb	operating ambient temperature	T_j< 125 °C	-20	+70	°C
T_stg	storage temperature		-65	+150	°C
V_es	electrostatic handling; note 1	note 1	-	-	V

Description

The TDA9851 is a bipolar-integrated BTSC stereo decoder for application in TV sets, VCRs and multimedia PCs.
