Product Details

Description

Features:

·BANDWIDTH : 10MHz TYPICAL
·RISE AND FALL TIME : 50ns TYPICAL
·CRT CATHODES CURRENT OUTPUTS FOR PARALLEL OR SEQUENTIAL CUT-OFF OR DRIVE ADJUSTMENT
·FLASHOVER PROTECTION
·POWER DISSIPATION : 3.5W
·ESD PROTECTED

Pinout

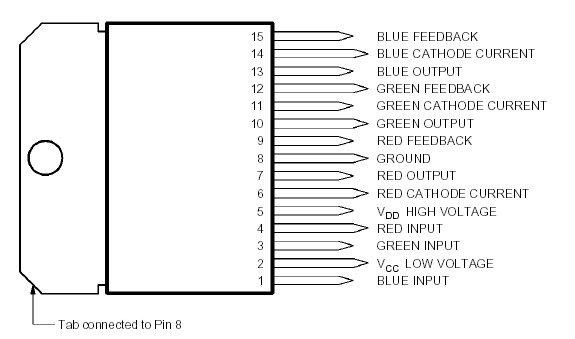

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_DD	Supply High Voltage Pin 5	250	V
V_CC	Supply Low Voltage Pin 2	35	V
I_OI_O	Output Current to V_DD to Ground Pins 7 - 10 - 13	Protected 8	mA
I_F I_F	Output Current to V_DD to Ground Pins 9 - 12 - 15	45 45	mA mA
I_j	Input Current Pins 1 - 3 - 4	60	mA
T_j	Junction Temperature	150
T_oper	Operating Ambient Temperature	0 to 70
T_stg	Storage Temperature	55 to + 150

Description

The TEA5101A includes three video amplifiers desi-gned with a high voltage DMOS/bipolar technology. It drives directly the three CRT cathodes.

The device TEA5101A is protected against flashovers. Due to its three cathode current outputs, the TEA5101A can be used with both parallel and sequential sampling applications.
