SeekIC No. : 00305839 Detail

TEA5101B: Video Amplifiers RGB Amplifier

TEA5101B Data Sheet

Get Latest Price

Part Number:: TEA5101B
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

TEA5040 evaluate
Features: ·DIGITAL CONTROL OF BRIGHTNESS, SATURATION AND CONTRAST ON TV SIGNALS AND R, G, B INTERN...
TEA5040S evaluate
Features: ·DIGITAL CONTROL OF BRIGHTNESS, SATURATION AND CONTRAST ON TV SIGNALS AND R, G, B INTERN...
TEA5101A evaluate
Features: ·BANDWIDTH : 10MHz TYPICAL ·RISE AND FALL TIME : 50ns TYPICAL·CRT CATHODES CURRENT OUTPU...

Product Details

Quick Details

Number of Channels :	3	Supply Type :	Dual
Minimum Operating Temperature :	0 C	Maximum Operating Temperature :	+ 70 C
Package / Case :	Multiwatt-15	Packaging :	Tube

Description

Operating Supply Voltage :
Supply Current :
Packaging : Tube
Minimum Operating Temperature : 0 C
Maximum Operating Temperature : + 70 C
Supply Type : Dual
Number of Channels : 3
Package / Case : Multiwatt-15

Features:

·BANDWIDTH : 10MHz TYPICAL
·RISE AND FALL TIME : 50ns TYPICAL
·CRT CATHODES CURRENT OUTPUTS FOR PARALLEL OR SEQUENTIAL CUT-OFF OR DRIVE ADJUSTMENT
·FLASHOVER PROTECTION
·POWER DISSIPATION : 3.5W
·ESD PROTECTED

Pinout

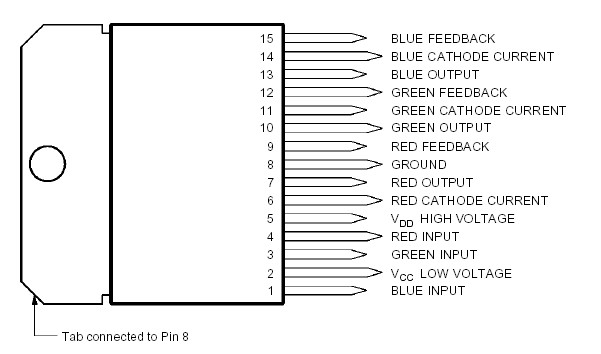

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_DD	Supply High Voltage Pin 5	250	V
V_CC	Supply Low Voltage Pin 2	20	V
I_O I_O	Output Current to V_DD to Ground Pins 7 - 10 - 13	Protected 8	mA
I_F I_F	Output Current to V_DDto Ground Pins 9 - 12 - 15	45 45	mA mA
I_j	Input Current Pins 1 - 3 - 4	60	mA
T_j	Junction Temperature	150
T_oper	Operating Ambient Temperature	0 to 70
T_stg	Storage Temperature	55 to + 150

Description

The TEA5101B includes three video amplifiers desi-gned with a high voltage DMOS/bipolar technology. It drives directly the three CRT cathodes.

The device TEA5101B is protected against flashovers. Due to its three cathode current outputs, the TEA5101B can be used with both parallel and sequential sampling applications.
