Features:

EACH CHANNEL EXCEPT FAST BLANKING HAS 6dB GAIN
R, G, B AND VIDEO SIGNALS ARE CLAMPED TOTHESAMEREFERENCE VOLTAGEINORDER TO HAVE NO OUTPUT DIFFERENTIAL VOLTAGE WHEN SWITCHING
ALL INPUT LEVELSCOMPATIBLE WITH NFC 92250AND EN 50049NORMS
30MHzBAND WIDTH FOR R, G, B SIGNALS
INTERNAL 6.7V SHUNT REGULATOR FOR :
   - LOW IMPEDANCE LOADS,
   - POWER DISSIPATION LIMITATION
INDEPENDANT VIDEO OR SYNCHRONIZING SIGNAL SELECTION
SIMULTANEOUS SWITCHING OFR, G, BAND FB SIGNALS BY FB1 INPUT (internal)


Pinout

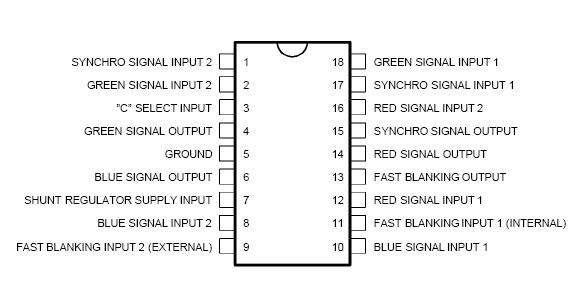

Connection Diagram


Specifications

SYMBOL PARAMETER VALUE UNIT
ICC Supply Current 150 mA
Vin Input Voltage (all inputs) 0.5 to VCC + 0.5 V
Toper Operating Temperature Range 0, 70 °C
Tj Junction Temperature 40, + 150 °C
Tstg Storage Temperature 40, + 150 °C
