Product Details

Description



Features:

EACH CHANNEL EXCEPT FAST BLANKING HAS 6dB GAIN
  R, G, B AND VIDEO SIGNALS ARE CLAMPED TOTHESAMEREFERENCE VOLTAGE IN ORDER TO HAVE NO OUTPUT DIFFERENTIAL VOLTAGE WHEN SWITCHING
ALL INPUT LEVELSCOMPATIBLE WITH NFC 92250AND EN 50049NORMS
30MHzBAND WIDTH FOR R, G, B SIGNALS INTERNAL 6.7V SHUNT REGULATOR FOR :
   - LOW IMPEDANCE LOADS,
   - POWER DISSIPATION LIMITATION
THE FIVE CHANNELS ARE SIMULTANEOUSLY SWITCHED BY ONLY ONE SELECT INPUT

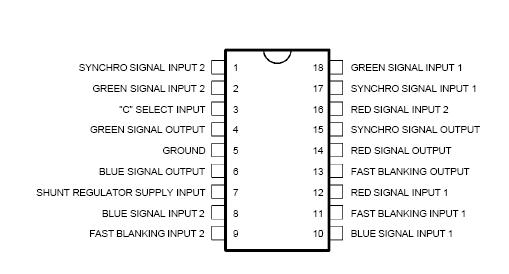

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER VALUE UNIT
ICC Supply Current 150 mA
Vin Input Voltage (all inputs) 0.5 to VCC + 0.5 V
Toper Operating Temperature Range 0, 70 °C
Tj Junction Temperature 40, + 150 °C
Tstg Storage Temperature 40, + 150 °C
