TEA5880TS

Features: No alignments necessary Complete adjustment-free stereo decoder; no external crystal required Fully integrated MPX VCO circuit Fully integrated low IF selectivity and demodulation The full integration level means no or few external components required No external FM discriminator needed...

product image

TEA5880TS Picture
See larger image
SeekIC No. : 004517368 Detail

TEA5880TS: Features: No alignments necessary Complete adjustment-free stereo decoder; no external crystal required Fully integrated MPX VCO circuit Fully integrated low IF selectivity and demodulation The ful...

TEA5880TS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA5880TS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

No alignments necessary
Complete adjustment-free stereo decoder; no external crystal required
Fully integrated MPX VCO circuit
Fully integrated low IF selectivity and demodulation
The full integration level means no or few external components required
No external FM discriminator needed due to full integration
Built-in adjacent channel interference total reduction (no 114 kHz, no 190 kHz)
The level of the incoming signal at which the radio must lock is software programmable
Due to new tuning concept, the tuning is independent of the channel spacing
Very high sensitivity due to integrated low noise RF input amplifier
RF Automatic Gain Control (AGC) circuit
Standby mode for power-down, no power switch circuitry required
2.7 V minimum supply voltage
MPX output for RDS
3-wire bus
In combination with the host, fast, low power operation of preset mode, manual search, automatic search and automatic store are possible
Host can be in Sleep mode after tuning; a minute retuning is recommended to compensate for temperature and voltage fluctuations
Covers all Japanese, European and US bands.


Pinout

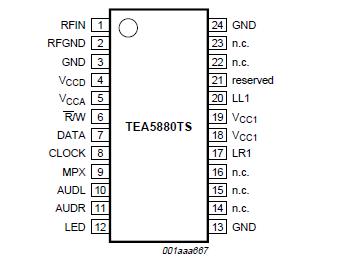

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Min
Max
Unit
VCCD
 digital supply voltage
-0.3
+5
V
VCCA
 analog supply voltage
-0.3
+8
V
Tstg
 storage temperature
-55
+150
°C
Tamb
 ambient temperature VCCA = VCC(VCO) = VCCD = 3 V
-10
+75
°C
VCCA = VCC(VCO) = VCCD = 5 V
-40
+85
°C
Vesd
 electrostatic discharge voltage for all pins
-200
+200
V
-2000
+2000
V



Description

The TEA5880TS stereo FM radio IC dramatically reduces the printed-circuit board area (only 100 mm2) needed to integrate FM radio functionality into portable devices. This makes it invaluable for any application where space is at a premium.

Relying on a system host processor for radio tuning, the TEA5880TS is ideally suited for powerful devices such as PDAs, notebooks, portable CD and MP3 players.
