TIR2000

Features: • Full infrared supportInfrared Data Association (IrDAE) 1.0 supports up to 115.2 kbpsIrDA 1.1 supports 1.15 Mbps and 4 Mbps Sharp Amplitude Shift Keying (ASK)TV remote control mode• Industry Standard Architecture (ISA) compatible bus interface• Selectable 16- or 64-byt...

product image

TIR2000 Picture
See larger image
SeekIC No. : 004519441 Detail

TIR2000: Features: • Full infrared supportInfrared Data Association (IrDAE) 1.0 supports up to 115.2 kbpsIrDA 1.1 supports 1.15 Mbps and 4 Mbps Sharp Amplitude Shift Keying (ASK)TV remote control mode&...

TIR2000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TIR2000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Full infrared support
      Infrared Data Association (IrDAE) 1.0 supports up to 115.2 kbps
      IrDA 1.1 supports 1.15 Mbps and 4 Mbps
      Sharp Amplitude Shift Keying (ASK)
      TV remote control mode
• Industry Standard Architecture (ISA) compatible bus interface
• Selectable 16- or 64-byte FIFO
• Full duplex infrared transmission and reception
• Controlled transmit start
• Supports back-to-back transactions
• Supports multiple optical transceivers
• Controlled Serial Interaction Pulse (SIP) generation
• Supports 11 IRQ options and 3 DMA configurations
• Power management support
• 8 general purpose I/O terminals
• Fully compatible with TL16C450, TL16C550C, TL16C750 UARTs
• Automatic fallback to TL16C550C mode
• UART baud rate up to 1 Mbps
• Auto-flow control in UART mode
• 3.3-V or 5-V operation
• Available in 64-pin TQFP package

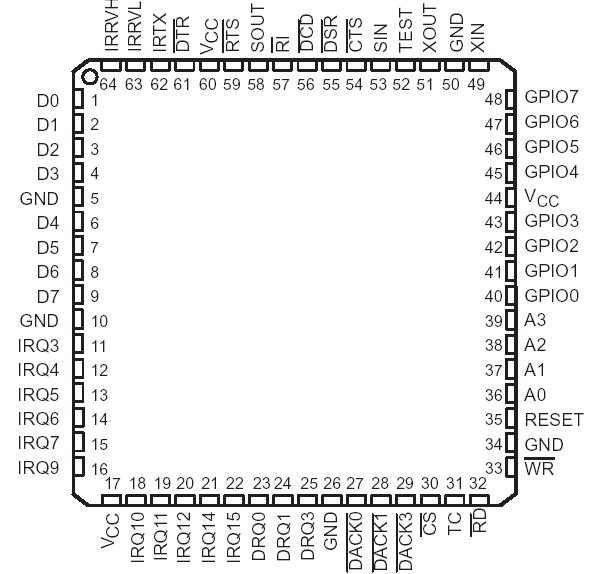

Pinout

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   0.5 V to 6 V
Input voltage range, VI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    0.5 V to VCC + 0.5 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .    0.5 V to VCC + 0.5 V
Operating free-air temperature range, TA. . . . . . . . . . . . . . . . . . . . . . . . . . . .    0°C to 70°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .     0°C to 150°C
