MFG:TEKMOS Package Cooled:PLCC D/C:07+
MFG: TEKMOS
Package Cooled: PLCC
D/C: 07+
Description: The TK68HC24 is an exact replacement of the Motorola 68HC24.The TK68HC24 is designed to replac...
The TK68HC24 is an exact replacement of the Motorola 68HC24.
The TK68HC24 is designed to replace the Port B and Port C functions of 6811 type microprocessors. These functions are lost when the 6811 type microprocessors are operated in the expanded mode. The TK68HC24 has an address re-mapping feature that allows multiple TK68HC24s to be used within a single system.
| Characteristics | Symbol | Min | Max | Unit |
| Supply Voltage | Vdd | -0.5 | 7.0 | V |
| Input Voltage | Vin | Vss 0.5 | Vdd + 0.5 | V |
| Current Drain per Pin | Imax | 25 | mA | |
| Operating Temperature Range | Ta | -40 | 85 | oC |
| Storage Temperature range | Tstg | -55 | +150 | oC |
` Exact replacement for the Motorola MC68HC24 PRU
` Utilizes the Tekmos 6824 Core
` Replaces ports B and C of 6811 type microprocessors.
` The chip-select function allows multiple TK68HC24s to be used in systems requiring multiple parallel ports.
` 3 5.5 Volt Operation.
` 0 5 MHz Operation.
` Supports all handshake and I/O modes.
` Available in 40 PDIP (P) and 44 PLCC (FN) versions.

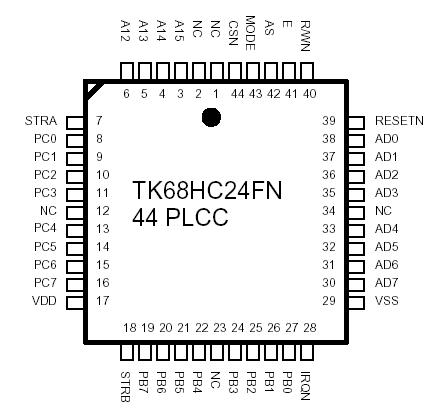

TK68HC24FN
PDF/DataSheet Download
The TK68HC24 is an exact replacement of the Motorola 68HC24.The TK68HC24 is designed to replace the Port B and Port C functions of 6811 type microprocessors. These functions are lost when the 6811 type microprocessors are operated in the expanded mode. The ...
