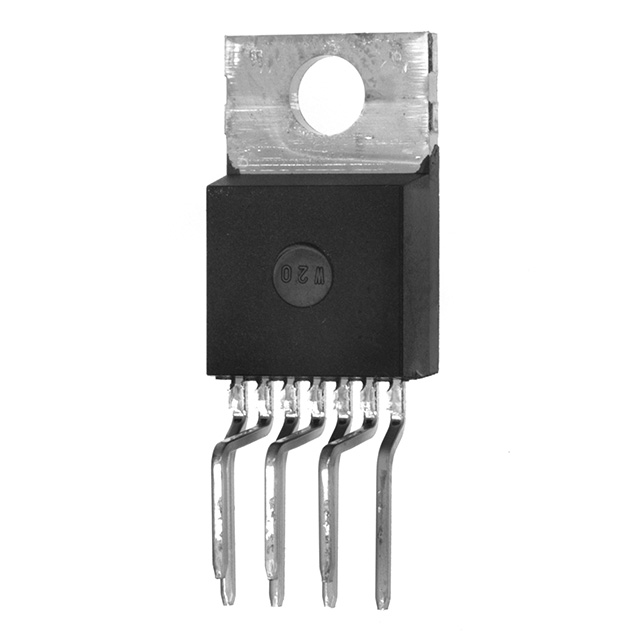

TLE5205-2S Product Image

TLE Series Datasheet download

Five Points

Part Number: TLE5205-2S

Category: Integrated Circuits (ICs)

MFG: Infineon Technologies





Descriptions: IC H-BRIDGE 5A DC MOTOR TO220-7

Price Break

500

Unit Price

3.80912

Extended Price

1904.56

(All prices are in USD) Prices for reference only
Urgent Purchase

TLE5205-2S General Description

IC H-BRIDGE 5A DC MOTOR TO220-7

TLE5205-2S Parameters

Technical/Catalog InformationTLE5205-2S
VendorInfineon Technologies
CategoryIntegrated Circuits (ICs)
ApplicationsDC Motor Driver, H Bridge
Number of Outputs1
Voltage - Supply5.3 V ~ 40 V
Voltage - Load-
Current - Output±5A
Operating Temperature-40°C ~ 150°C
Package / CaseTO-220-7
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TLE5205 2S
TLE52052S

TLE5205-2S datasheet

TLE5205-2S
PDF/DataSheet Download

  • Datasheet: TLE5205-2S
  • File Size: 205344 KB
  • Manufacturer: INFINEON [Infineon Technologies AG]
  • Click here to Download
