TLE6230GP

On Time (Max) :
Off Time (Max) :
Operating Supply Voltage :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 150 C
Supply Current (Max) : 1 mA
Number of Outputs : 8
On Resistance (Max) : 0.8 Ohms
Package / Case : PDSO-36-12


Features:

·  Short Circuit Protection
·  Overtemperature Protection
·  Overvoltage Protection
·  16 bit Serial Data Input and Diagnostic
   Output (2 bit/ch. acc. SPI protocol)
·  Direct Parallel Control of Four Channels
   for PWM Applications
·  Parallel Inputs High or Low Active
   Programmable
·  General Fault Flag
·  Low Quiescent Current
·  Compatible with 3V Micro Controllers
·  Electostatic Discharge (ESD) Protection


Application

`  C Compatible Power Switch for 12 V Applications
`  Switch for Automotive and Industrial System
`  Solenoids, Relays and Resistive Loads
`  Robotic Controls

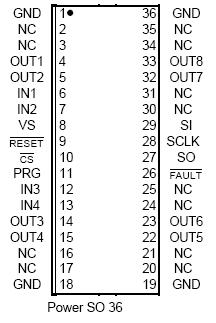

Pinout




Specifications

for Tj = 40°C to 150°C
Parameter	Symbol	Values	Unit
Supply voltage	VS	-0.3 ... +7	V
Continuous Drain Source Voltage (OUT1...OUT8)	VDS	40	V
Input Voltage, All Inputs and Data Lines	VIN	- 0.3 ... + 7	V
Load Dump Protection VLoad Dump = UP+US; UP=13.5 V With Automotive Relay Load RL = 70 RI1)=2 ; td=400ms; IN = low or high With RL= 24 RI=2 ; td=400ms; IN = high or low	VLoad Dump2)	80 52	V
Operating Temperature Range Storage Temperature Range	Tj Tstg	- 40 ... + 150 - 55 ... + 150	°C
Output Current per Chan	D(lim)	self limited	A
Output per Channel @ TA = 25°C (All 8 Channels ON; Mounted on PCB ) 3)	ID	500	mA
Output Clamping Energy ID = 0.5 A	EAS	50	mJ
Power Dissipation (mounted on PCB) @ TA = 25°C	Ptot	3.3	W
Electrostatic Discharge Voltage (Human Body Model) according to MIL STD 883D, method 3015.7 and EOS/ESD assn. standard S5.1 - 1993	VESD	2000	V
DIN Humidity Category, DIN 40 040	--	E	--
IEC Climatic Category, DIN IEC 68-1	--	40/150/56	--
Thermal Resistance junction - case junction - ambient @ min. footprint junction - ambient @ 2.25 cm2 cooling area with heat pipes	RthJC RthJA	5 50 38	K/W

Description

Octal Low-Side Switch TLE6230GP in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and eight open drain DMOS output stages. The TLE 6230 GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via an SPI Interface. Additionally four channels can be controlled direct in parallel for PWM applications. Therefore the TLE6230GP is particularly suitable for engine management and powertrain systems.

Parameters:

Technical/Catalog Information	TLE6230GP
Vendor	Infineon Technologies
Category	Integrated Circuits (ICs)
Package / Case	DSO-36
Mounting Type	Surface Mount
Type	Low Side
Voltage - Supply	4.5 V ~ 5.5 V
On-State Resistance	800 mOhm
Current - Output/Channel	-
Current - Peak Output	1.5A
Packaging	-
Input Type	SPI
Number of Outputs	8
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TLE6230GP TLE6230GP
