TLE6255G

Supply Current :
Operating Temperature Range :
Packaging : Reel
Operating Supply Voltage : 5 V
Type : Transceiver
Package / Case : DSO


Features:

• Single wire Transceiver
• Ambient operation range 40 °C to 125 °C
• Supply voltage operation range 5.5 V to 28 V
• Very low current consumption in sleep mode
• CAN-Bus, Load and V_batt pins 4 kV ESD protected
• Short circuit and overtemperature protected
• Input bilevel feature for controller wake-up
• Output bilevel feature for wake up call
• Loss of Ground protection
• Bus dominant timeout feature
• Programmable bus out slewrate
• Under- and over-voltage-lockout
• High speed mode up to 100 Kbit/s


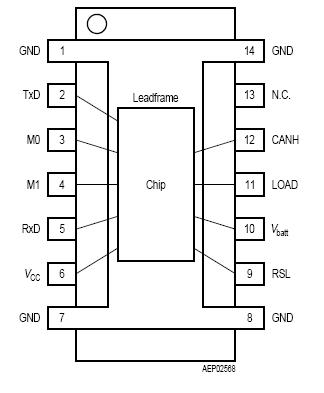

Application




Specifications

Parameter	Symbol	Limit Values		Unit	Notes
		min.	max.
Voltages
Supply voltage	Vbatt	0.3	40	V	-
CAN bus input/output voltage	VCANH	28	28	V	-
Load voltage	VLOAD	28	28	V	-
Logic supply voltage	VCC	0.3	7	V	-
Logic voltages (VRxD; VTxD; VM0; VM1; VRSL)	Vlogic	0.3	7	V	-
Currents
CAN Bus current	ICANH	-	-	mA	internally limited
Load current	ILOAD	-	-	mA	internally limited
ESD-Protection (Human Body Model; According to MIL STD 833 D)
pin CANH, Load, Vbatt	VESD	4000	4000	V	-
other pins	VESD	2000	2000	V	-
Temperatures
Junction temperature	Tj	40	150	°C	-
Junction temperature	Tj	-	175	°C	t < 1000 h
Junction temperature	Tj	-	200	°C	t < 10 h
Storage temperature	Tstg	50	150	°C	-
Thermal Resistances-
Junction to pin	Rthj-pin	-	40	K/W	junction to pin 1
Junction ambient	Rthj-a	-	65	K/W	-

Note: Maximum ratings are absolute ratings; exceeding any one of these values may
          cause irreversible damage to the integrated circuit.


Description

The TLE6255G is a special featured low speed Single-Wire-Bus Transceiver.

The TLE6255G is designed primarily for use in single wire CAN systems operating with various CSMA/CR (carrier sense multiple access/collision resolution) protocols such as the BOSCH Controler Area Network (CAN) version 2.0.

The normal communication bit rate TLE6255G is typically 25 Kbit/s. For software or diagnosic data download the bitrate may be increased to 100 Kbit/s.
With many integrated features such as slewrate controlled output, loss of ground circuit, bi-level wake-up and sleep mode the TLE 6255 G is optimized for use in most all automotive applications.

The TLE6255G is based on Siemens power technology  SPT^® which allows bipolar and CMOS control circuitry to be integrated with DMOS power devices on the same
monolithic circuitry.

Additional features like short circuit and overtemperature protection TLE6255G, over- and undervoltage lockout, wide operational temperature and supply voltage ranges and an enhanced power SO-package with high thermal capacity and low thermal resistance will enhance the realibility and robustness of the TLE 6255 G.


Parameters:

Technical/Catalog Information	TLE6255G
Vendor	Infineon Technologies
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	1/1
Type	Transceiver
Voltage - Supply	4.75 V ~ 5.25 V
Package / Case	DSO-14
Packaging	Tape & Reel (TR)
Protocol	CAN
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TLE6255G TLE6255G
