TLE 4261

Features: · Very low-drop voltage· Very low quiescent current· Low starting-current consumption· Proof against reverse polarity·Input voltage up to 42 V· Overvoltage protection up to 65 V (£ 400 ms)· Short-circuit proof· External setting of reset delay· Integrated watchdog circuit· Wide temp...

product image

TLE 4261 Picture
See larger image
SeekIC No. : 004520783 Detail

TLE 4261: Features: · Very low-drop voltage· Very low quiescent current· Low starting-current consumption· Proof against reverse polarity·Input voltage up to 42 V· Overvoltage protection up to 65 V (£ 4...

TLE 4261 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TLE 4261
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Very low-drop voltage
· Very low quiescent current
· Low starting-current consumption
· Proof against reverse polarity
· Input voltage up to 42 V
· Overvoltage protection up to 65 V (£ 400 ms)
· Short-circuit proof
· External setting of reset delay
· Integrated watchdog circuit
· Wide temperature range
· Overtemperature protection
· Suitable for automotive use
· EMC proofed (100 V/m)


Pinout

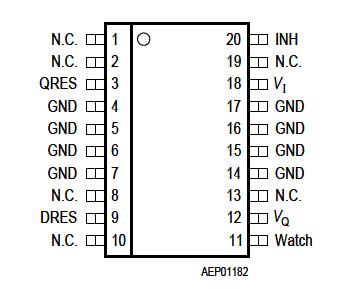

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
 Remarks
min.
max.
Input I
Input voltage VI 42
 45
 V t < 400ms
Input voltage VI   65 t 400 ms
Input current II   1.6 A Internally limited
Inhibit
Voltage V2 0.3 42 V
Current I2   5 mA Internally limited
Reset Output
Voltage VR 0.3 42 V t < 400 ms
Current IR       Internally limited
Ground
Current IGND   0.5 A
Reset Delay
Voltage VD 0.3 42 V
Current ID       limited internally
Watchdog
Voltage VW 0.3 VI V
Output
Differential voltage
Current		 VI VQ
IQ		 5.25
 VI
1.4		 V
A
Temperatures
Junction temperature Tj 50 150 °C
Storage temperature Tstg 50 150 °C
Operating Range
Input voltage VI   32 V see diagram
Junction temperature Tj 40 150 °C
Thermal Resistances
System-air RthSA   65 (70) 1) K/W
System-case RthSC   3 (15) 1) K/W

1) Figures in parenthesis refer to TLE 4261 G.


Description

TLE 4261 is a 5-V low-drop voltage regulator in a P-TO220-7 or in a P-DSO package. The maximum input voltage is 42 V (65 V/ 400 ms). The TLE 4261 can produce an output current of more than 500 mA. It is short-circuit proof and incorporates temperature protection that disables the circuit at impermissibly high temperatures.
