Part Number: TLP3240





Package Cooled: SS0P4



Description: The TOSHIBA TLP3240 is a super small-outline photorelay, suitable for surface-mount assembly. The TLP3...


Urgent Purchase

TLP3240 General Description


The TOSHIBA TLP3240 is a super small-outline photorelay, suitable for surface-mount assembly. The TLP3240 consists of a GaAℓAs infrared-emitting diode optically coupled to a photo-MOS FET and housed in a 4-pin package. Its characteristics also include low OFF-state current and low output pin capacitance, enabling it to be used in high-frequency measuring instruments.

TLP3240 Maximum Ratings

CHARACTERISTIC
SYMBOL
RATING
UNIT
LED

Forward Current

IF
30
mA
Forward current derating (Ta85)
IF/Ta
-0.3
mA
Peak transient forward current (Note1)
IFPT
5
A
Reverse Voltage
VR
125
V
DETECTOR
 Off-State Output Terminal Voltage

VDRM

40
V
On-State RMS Current

IT(RMS)
120
mA
On-State Current Derating (Ta25)
IT/
-1.2
mA /
Junction Temperature
Tj
125
Storage Temperature Range
Tstg
-40~125
Operating Temperature Range
Topr
-20to85
Lead Soldering Temperature(10s)
Tsol
260
Isolation voltage (AC,1min.,R.H.60%,Ta=25) Note2
BVS
1500
Vrms
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.

Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook ("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test report and estimated failure rate, etc).

Note1: Pulse width PW1us, 300pps.
Note2: This device is regarded as a two terminal device: pins 1 and 3 are shorted together, as are pins 4, 5 and 6.

TLP3240 Features

• 4 pin SSOP (SSOP4) : 1.8 mm high, 1.27 mm pitch
• 1-Form-A
• Peak off-state voltage : 40 V (Min.)
• Trigger LED current : 3 mA (Max.)
• On-state current : 120 mA (Max.)
• On-state resistance : 14(Max.), 12(Typ.)
• Output capacitance : 0.8 pF (Max.), 0.45 pF (Typ.)
• Isolation voltage : 1500 Vrms (Min.)

TLP3240 Connection Diagram

TLP3240 Connection Diagram

TLP3240 datasheet

TLP
PDF/DataSheet Download

Find TLP3240 Suppliers

  • ·TLP1000A
  • TOSHIBA [Toshiba Semiconductor]
  • TOSHIBA PHOTOINTERRUPTER INFRARED LED + PHOTO IC
  • 430291 KB
  • TLP1000A Datasheet Download
  • ·TLP1001A
  • TOSHIBA [Toshiba Semiconductor]
  • TOSHIBA PHOTOINTERRUPTER INFRARED LED + PHOTO IC
  • 418599 KB
  • TLP1001A Datasheet Download
  • ·TLP1002A
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 425171 KB
  • TLP1002A Datasheet Download
  • ·TLP1003A
  • Toshiba
  •
  • 421349 KB
  • TLP1003A Datasheet Download
  • ·TLP1004A
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 207152 KB
  • TLP1004A Datasheet Download
  • ·TLP1004AF
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 207152 KB
  • TLP1004AF Datasheet Download
  • ·TLP1005A
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 207152 KB
  • TLP1005A Datasheet Download
  • ·TLP1005AF
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 207152 KB
  • TLP1005AF Datasheet Download

Related Part Number

TLP3240 Relative Products

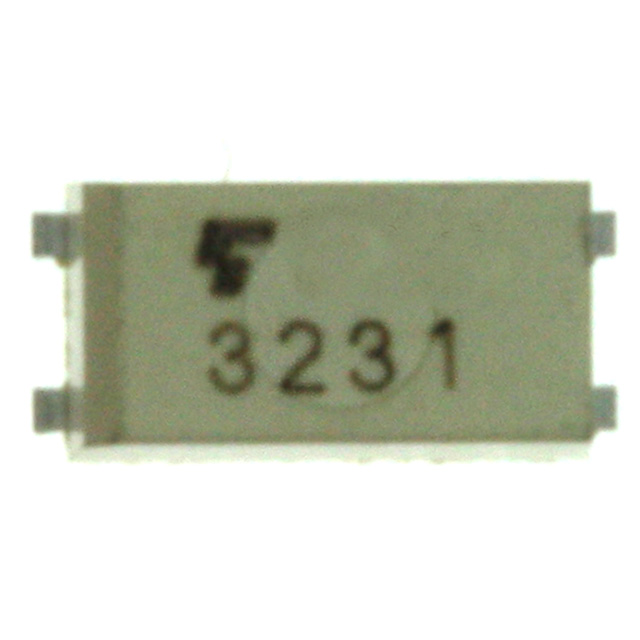

  • TLP3231(TP15,F)

    TLP3231(TP15,F)

    PHOTORELAY MOSFET OUT 4MA 4-SSOP

  • TLP3231

    TLP3231

    The TOSHIBA TLP3231 is a super small-outline photorelay, suitable for surface-mount assembly. The TLP3231 consists of a GaAs infrared-emitting diode optically coupled to a photo-MOS FET and housed in a 4-pin package. TLP3231's characteristics also include lo...

  • TLP3230

    TLP3230

    The TOSHIBA TLP3230 is a super small-outline photorelay, suitable for surface-mount assembly. The TLP3230 consists of a GaAs infrared-emitting diode optically coupled to a photo-MOS FET and housed in a 4-pin package.TLP3230's characteristics also include low...

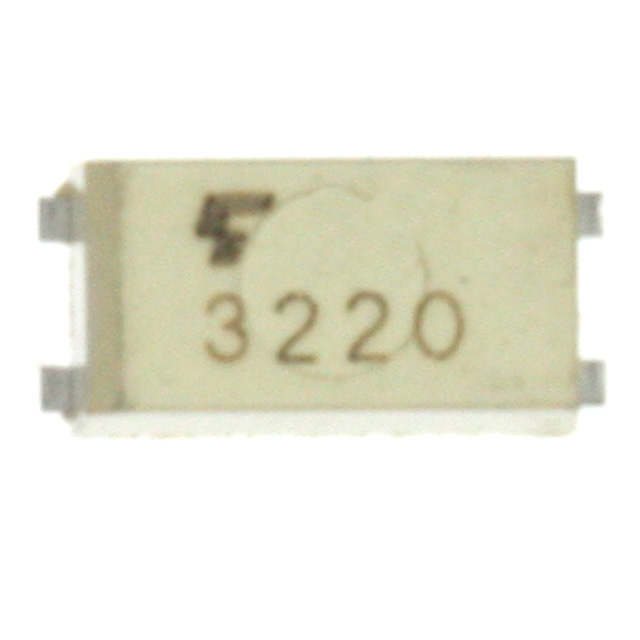

  • TLP3220(TP15,F)

    TLP3220(TP15,F)

    PHOTORELAY MOSFET OUT 5MA 4-SSOP

  • TLP3220

    TLP3220

    The TOSHIBA TLP3220 is a super small-outline photorelay, suitable for surface-mount assembly. The TLP3220 consists of a GaAs infrared-emitting diode optically coupled to a photo-MOS FET and housed in a 4-pin package.

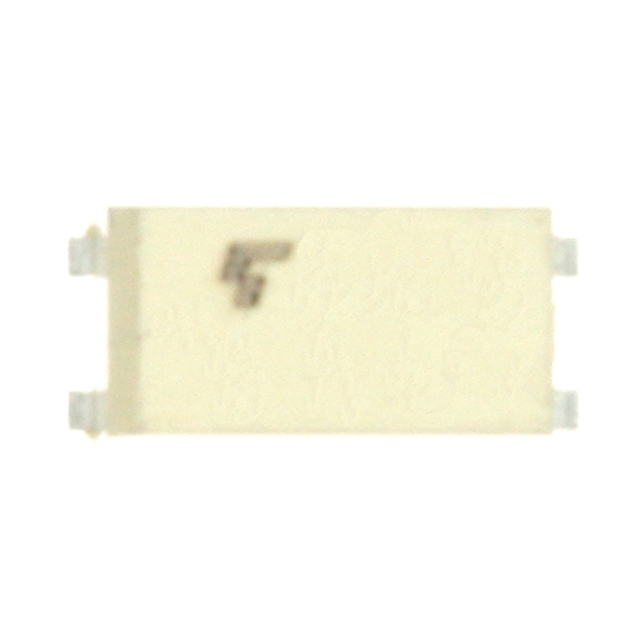

  • TLP3217(TP15,F)
