General Description
TLV271 General Description
The TLV27x takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. This makes it an ideal alternative to the TLC27x family for applications where rail-to-rail output swings are essential. The TLV27x also provides 3-MHz bandwidth from only 550 A.
Like the TLC27x, the TLV27x is fully specified for 5-V and ±5-V supplies. The maximum recommended suppl voltage is 16 V, which allows the devices to be operated from a variety of rechargeable cells (±8 V supplies dow to ±1.35 V).
The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an attractive alternative for the TLC27x in battery-powered applications.
All members are available in PDIP and SOIC with the singles in the small SOT-23 package, duals in the MSOP, and quads in the TSSOP package.
The 2.7-V operation makes it compatible with Li-Ion powered systems and the operating supply voltage range of many micropower microcontrollers available today including TI's MSP430
TLV271 Maximum Ratings
Supply voltage, VDD . . . . . . . . . . . . . . . . . . . . . . . . (see Note 1) 16.5 V
Differential input voltage, VID. . . . . . . . . . . . . . . . . . . . . . . . . . . ±VDD
Input voltage range, VI(see Note 1) . . . . . . ... . -0.2 V to VDD + 0.2 V
Input current range, II. . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 10 mA
Output current range, IO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 mA
Continuous total power dissipation . . .See Dissipation Rating Table
Operating free-air temperature range, TA :C suffix. . . . . . . .0 to 70
I suffix. . . . . . . .. -40 to 125
Maximum junction temperature, TJ. . . . . . . . . . . . . . . .. . . . . . .. .150
Storage temperature range, Tstg. .. . . . . . . . . . . . . . . .. .-65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds ..260
Differential input voltage, VID. . . . . . . . . . . . . . . . . . . . . . . . . . . ±VDD
Input voltage range, VI(see Note 1) . . . . . . ... . -0.2 V to VDD + 0.2 V
Input current range, II. . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 10 mA
Output current range, IO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100 mA
Continuous total power dissipation . . .See Dissipation Rating Table
Operating free-air temperature range, TA :C suffix. . . . . . . .0 to 70
I suffix. . . . . . . .. -40 to 125
Maximum junction temperature, TJ. . . . . . . . . . . . . . . .. . . . . . .. .150
Storage temperature range, Tstg. .. . . . . . . . . . . . . . . .. .-65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds ..260
TLV271 Features
Rail-To-Rail Output
Wide Bandwidth ...3 MHz
High Slew Rate ...2 .4 V/s
Supply Voltage Range ...2.7 V to 16 V
Supply Current ...550A/Channel
Input Noise Voltage ...39 nV/HZ
Input Bias Current...1 pA
Specified Temperature Range
0 to 70...Commercial Grade
-40 to 125...Industrial Grade
Ultrasmall Packaging
5 Pin SOT-23 (TLV271)
8 Pin MSOP (TLV272)
Ideal Upgrade for TLC27x Family
Wide Bandwidth ...3 MHz
High Slew Rate ...2 .4 V/s
Supply Voltage Range ...2.7 V to 16 V
Supply Current ...550A/Channel
Input Noise Voltage ...39 nV/HZ
Input Bias Current...1 pA
Specified Temperature Range
0 to 70...Commercial Grade
-40 to 125...Industrial Grade
Ultrasmall Packaging
5 Pin SOT-23 (TLV271)
8 Pin MSOP (TLV272)
Ideal Upgrade for TLC27x Family
TLV271 Typical Application
Audio
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless
Automotive
Broadband
Digital Control
Military
Optical Networking
Security
Telephony
Video & Imaging
Wireless

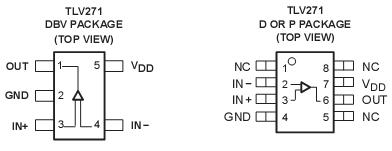

TLV271 Connection Diagram
TLV271
PDF/DataSheet Download
