Features:

• Designed to comply with the requirements of GR1089, UL1950, EN60950, BABT and CSA950 to provide a supplementary insulation barrier with a working voltage of 250V
• UL File Number E150991
• Minimum interwinding breakdown voltage of 1500 Vrms
• Operating and storage temperature range: -40° to +85° C
• Meets IEC 695, 2-2 flammability requirements
• PWB Process Capability: standard printed wiring board assembly techniques, total-immersion cleaning
• Reliability testing: shock, vibration, temperature cycling, temperature - humidity - bias


Pinout

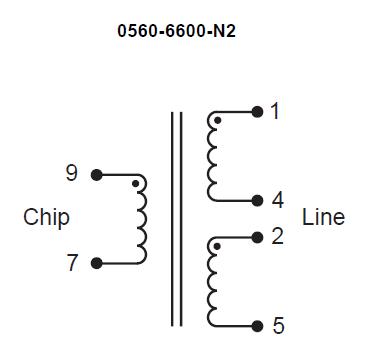

Connection Diagram


Specifications

Part Number
Turns Ratio
±2%
Inductance1
mH ±5%
Leakage
Inductance2
H max
DCR

max
Longitudinal
Balance
dB min
Insertion
Loss
dB max
Harmonic
Distortion3
dB max
Chip : Line
Line Side
Line Side
Chip
Side
Line
Side
100 kHz -
300 kHz
100 kHz
5 kHz
Fundamental
0560-6600-N2
1 : 2.2
3
10
2.0
4.0
55
1.5
-75
All measurements are made with pins 2 and 4 connected
1. Inductance measured at 10 kHz, 0.1 Vac
2 Measured at 100 kHz, 0.1 Vac
3. Measurements made with 100 source and 27.9 load impedance, 2 Vrms
