Product Details

Description



Features:

• Bootstrap circuit gives simple high side supply
• Bootstrap diode is built in
• PWM and 3-phase decoder circuit are built in
• Outputs Rotation pulse signals
• 3-phase bridge output using IGBTs
• FRDs are built in
• Protective functions for overcurrent, overheating and undervoltage

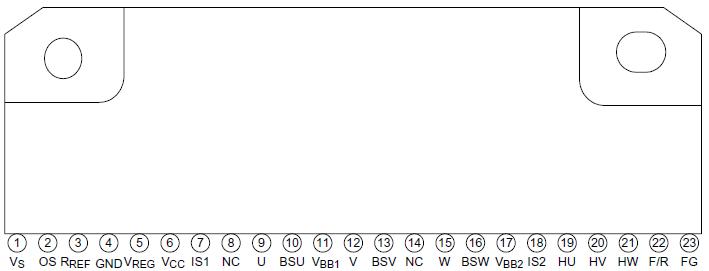

Pinout

Connection Diagram


Specifications

Characteristics
Symbol
Rating
Unit
Power supply voltage
VBB
330
V
VCC
18
V
Output current (DC)
Iout
1
A
Output current (pulse)
Iout
2
A
Input voltage (except VS)
VIN
−0.5~VREG + 0.5
V
Input voltage (only VS)
VVS
6.5
V
Power dissipation (Ta = 25)
PC
4
W
Power dissipation (Tc = 25)
PC
20
W
Operating temperature
TOPE
−20~135
Junction temperature
Tj
150
Storage temperature
Tstg
−55~150
Lead-heat sink isolation voltage
Vhs
1000 (per 1 m)
V



Description

The TPD4011K is a DC brush less motor driver using high voltage PWM control. It is fabricated by high voltage SOI process.It contains PWM circuit, 3 phase decode logic, level shift high side driver, low side driver, IGBT outputs, FRDs and protective functions for overcurrent, overheat and undervoltage. It is easy to control a DC brush less motor by just putting logic inputs from a micro computer and hole IC into the TPD4011K.
