TPS54980PWPR: DC/DC Switching Regulators 3.3V Inp Sync Buck Converter

TPS54980PWPR Data Sheet

US $ 3.41~3.45 / Piece | Get Latest Price

Part Number:: TPS54980PWPR
Mfg:: Texas Instruments
Supply Ability:: 5000

Price Break

Qty
0~1600
1600~2000

Unit Price
$3.45
$3.41

Processing time
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/3

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

TPS5100IPW evaluate
US $1.45 - 2.33 / Piece

DC/DC Switching Controllers Lo Inpt Vltg Triple Ch Cntrllr
TPS51020EVM-001 evaluate
US $33.48 - 33.48 / Piece

Power Management IC Development Tools TPS51020-001 Eval Mod
TPS5102IDBTR evaluate
US $1.77 - 1.78 / Piece

DC/DC Switching Controllers Dual Output Synch Buck Cntrlr

Product Details

Quick Details

Mounting Style :

SMD/SMT

Package / Case :

HTSSOP-28

Description

Input Voltage MAX :
Switching Frequency :
Output Voltage :
Output Current :
Number of Outputs :
Maximum Operating Temperature :
Mounting Style : SMD/SMT
Package / Case : HTSSOP-28

Features:

` Power Up/Down Tracking For Sequencing
` 15-m MOSFET Switches for High Efficiency at 9-A Continuous Output Source or Sink Current
` Wide PWM Frequency:Fixed 350 kHz or Adjustable 280 kHz to 700 kHz
` Power Good and Enable
` Load Protected by Peak Current Limit and Thermal Shutdown
` Integrated Solution Reduces Board Area and Component Count

Application

· Low-Voltage, High-Density Distributed Power Systems
· Point of Load Regulation for High Performance DSPs, FPGAs, ASICs and Microprocessors Requiring Sequencing
· Broadband, Networking and Optical Communications Infrastructure

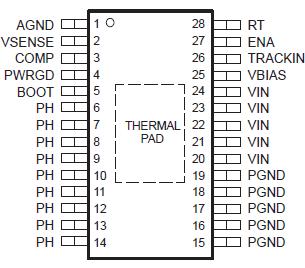

Pinout

Connection Diagram

Specifications

		TPS54980	UNIT
Input voltage range, V_I	VIN	−0.3 V to 4.5 V	V
	ENA	−0.3 V to 7 V
	RT	−0.3 V to 6 V
	VSENSE, TRACKIN	−0.3 V to 4V
	BOOT	−0.3 V to 10 V
Output voltage range, V_O	VBIAS, COMP, PWRGD	−0.3 V to 7 V	V
Output voltage range, V_O	PH	−0.6 V to 6 V	V
Source current, I_O	PH	Internally Limited
Source current, I_O	COMP, VBIAS	6	mA
Sink current, I_S	PH	16	A
	COMP	6	mA
	ENA, PWRGD	10	mA
Voltage differential	AGND to PGND	±0.3	V
Operating virtual junction temperature range, T_J		−40 to 125
Storage temperature, T_stg		−65 to 150
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds		300

Description

As a member of the SWIFT^TMfamily of dc/dc regulators,the TPS54980 low-input voltage high-output current
synchronous buck PWM converter integrates all required active components. Using the TRACKIN pin with other regulators, simultaneous power up and down are easily implemented. Included on the substrate with the listed features are a true, high performance, voltage error amplifier, TPS54980 enables maximum performance and flexibility in choosing the output filter L and C components; an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally or externally set slow-start circuit to limit inrush currents; and a power good output useful for processor/logic reset.

The TPS54980 is available in a thermally enhanced 28-pin TSSOP (PWP) PowerPAD^TMpackage, which eliminates bulky heatsinks. TI provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high-performance power supply designs to meet aggressive equipment development cycles.

Parameters:

Technical/Catalog Information	TPS54980PWPR
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Type	Step-Down (Buck)
Number of Outputs	1
Voltage - Input	3 ~ 4 V
Voltage - Output	0.9 ~ 2.5 V
Current - Output	9A
Power - Output	6.94W
Package / Case	28-TSSOP Exposed Pad, 28-eTSSOP, 28-HTSSOP
Packaging	Tape & Reel (TR)
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	14 mOhm
Operating Temperature	-40°C ~ 85°C
Frequency - Switching	350kHz
Drawing Number	296; 4073225; PWP; 14, 16, 20, 24, 28
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TPS54980PWPR TPS54980PWPR
