TPU 3040

Features: The TPU 3040 is an integrated circuit designed in CMOS technology. As a stand-alone system or in combination with the DIGIT 3000 system, the TPU 3040 offers a wide range of new and interesting features, some of them unique in comparison with other products on the market.The TPU 3035 is a...

product image

TPU 3040 Picture
See larger image
SeekIC No. : 004527744 Detail

TPU 3040: Features: The TPU 3040 is an integrated circuit designed in CMOS technology. As a stand-alone system or in combination with the DIGIT 3000 system, the TPU 3040 offers a wide range of new and interes...

TPU 3040 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TPU 3040
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

The TPU 3040 is an integrated circuit designed in CMOS technology. As a stand-alone system or in combination with the DIGIT 3000 system, the TPU 3040 offers a wide range of new and interesting features, some of them unique in comparison with other products on the market.

The TPU 3035 is a stripped-down version of TPU 3040, designed for low-cost applications. The basic chip architecture remains unchanged, whereas some of the more sophisticated features are removed (see Tab 11). In the following description only the TPU 3040 is mentioned.




Pinout

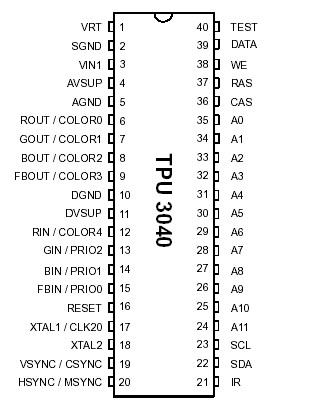

Connection Diagram


Specifications

Symbol Parameter Pin No. Min. Max. Unit
TA Ambient Operating Temperature 0 65 °C
TS Storage Temperature 40 +125 °C
VDSUP Digital Supply Voltage 34 -0.3 6 V
VASUP Analog Supply Voltage 41 -0.3 6 V
VDI Digital Input Voltage   -0.3 VDSUP +0.3 V
VAI Analog Input Voltage
-0.3
 VDSUP +0.3 V
IO Output Current   -10 10 mA



Description

The TPU 3040 is a single chip World System Teletext (WST) decoder for applications in analog and digital TV sets. Based on a 65C02 core with RAM and ROM on chip, an adaptive data slicer, a display controller and a number of interfaces, the TPU 3040 offers acquisition and display of various teletext and data services such as WST, PDC, VPS and WSS.
