TQ5635

IC PCS LNA/MIXER RECEIVER 16-QFN

product image

TQ5635 Picture
SeekIC No. : 004527817 Detail

TQ5635: IC PCS LNA/MIXER RECEIVER 16-QFN

floor Price/Ceiling Price

US $ 1.36~1.36 / Piece | Get Latest Price
Part Number:
TQ5635
Mfg:
Triquint Semiconductor Inc
Supply Ability:
5000

Price Break

  • Qty
  • 1~2500
  • Unit Price
  • $1.36
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Single 3.0 V Operation
 Adjustable Gain/IP3/Current
 Low Current Operation
Few external components
 QFN 3x3 mm, 16 Pin Leadless Plastic Package
 High Input IP3
Low Noise Figure



Application

PCS band CDMA mobile Applications
Wireless data applications



Pinout

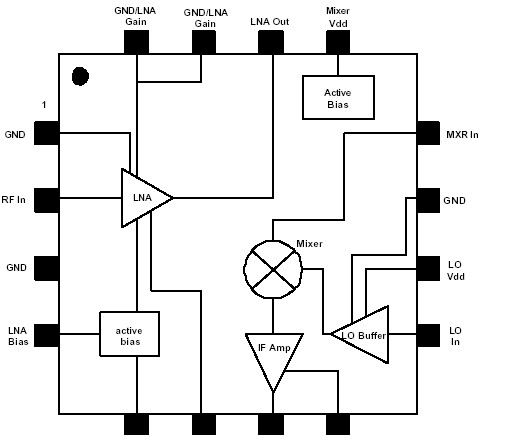

  Connection Diagram


Specifications

Parameter
Symbol
Minimum
Nominal
Maximum
Units
Storage Temperature
Tstore
-40
25
125
deg. C
Case Temperature w/bias
Tc
-40
25
85
deg. C
Supply Voltage
VDD
0
2.8
5.0
V
Voltage to any non supply pin
-
-
-
-
VDD+0.5V
Power Dissipation
P
-
-
100
mW
Signal Power
Ps
-
-
20
dBm



Description

The TQ5635 is an LNA-Downconverter optimized for use in the Korea CDMA PCS bands. The integrated LNA has a single high gain mode that provides over 15 dB of gain, and features very low NF and excellent IP3. An external resistor controls LNA bias, making LNA Idd adjustable. The integrated mixer TQ5635 features very high IP3 and provision for external adjustment of gain, IP3, and Idd. Because of the external LO tuning inductor, IF's in the range of 85 to 200Mhz can be used. The excellent RF performance with low current coupled with very small lead-less plastic package is ideally suited for PCS band mobile phone.




Parameters:

Technical/Catalog InformationTQ5635
VendorTriquint Semiconductor Inc
CategoryRF and RFID
Package / Case16-QFN
Voltage - Supply3V
Current - Supply25mA
Gain24.5dB
Frequency1.855GHz
RF TypeCDMA
PackagingTape & Reel (TR)
Noise Figure2.3dB
P1db-4.75dBm
Test Frequency-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TQ5635
TQ5635
