TQ6124

Features: • 1Gs/s aggregate bandwidth• 14-bit resolution• RF front end• ECL-compatible inputs• 0.026% DC differential non-linearity• 0.035% DC integral non-linearity• SFDR: 52 dBc @ FOUT = 75 MHz 48 dBc @ FOUT = 148 MHz 45 dBc @ FOUT = 199 MHz• 1.4 W...

product image

TQ6124 Picture
See larger image
SeekIC No. : 004527825 Detail

TQ6124: Features: • 1Gs/s aggregate bandwidth• 14-bit resolution• RF front end• ECL-compatible inputs• 0.026% DC differential non-linearity• 0.035% DC integral non-linear...

TQ6124 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TQ6124
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1Gs/s aggregate bandwidth
• 14-bit resolution
• RF front end
• ECL-compatible inputs
• 0.026% DC differential non-linearity
• 0.035% DC integral non-linearity
• SFDR: 52 dBc @ FOUT = 75 MHz
             48 dBc @ FOUT = 148 MHz
             45 dBc @ FOUT = 199 MHz
• 1.4 W power dissipation
• 44-pin ceramic QFP package or die only


Application

• Direct Digital Synthesis
• Pixel generation for workstations and high-end monitors
• Direct-generation of broadband video for cable TV
• High-speed arbitrary waveform generators


Pinout

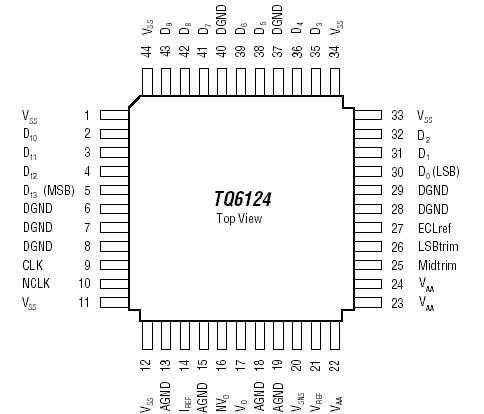

Connection Diagram


Specifications

Symbol Parameter Min. Max. Unit
VSS Digital Supply 7.0   V
VAA Analog Supply 16.0   V
VO, NVO Analog Output Voltage 2.0 2.0 V
VI Digital Input Voltage VSS 0.5 +0.5 V
II Digital Input Current 1.0 +1.0 mA
VREF Reference Voltage VAA-2 0 V
IREF Reference Current 1 1 mA
  Power Dissipation   5 W
TSTG Storage Temperature 65 150 °C
TJ Operating Junction Temperature   150 °C



Description

The TQ6124 is a 14-bit monolithic digital-to-analog converter. The TQ6124 achieves conversion accuracy by using a segmented architecture, precision current sources, and on-chip nichrome resistors. The only external components required are an external reference and loop control amplifier.

The TQ6124 is ideally suited for applications in direct digital synthesis, pixel generation for high-resolution monitors, broadband video generation, and high-speed arbitrary waveform generators.
