TR3003

Packaging : Reel
Operating Supply Voltage : 3.3 V
Type : Transceiver
Package / Case : SM-20L
Operating Frequency : 304.025 MHz


Features:

• Designed for Short-Range Wireless Data Communications
• Supports RF Data Transmission Rates Up to 115.2 kbps
• 3 V, Low Current Operation plus Sleep Mode
• Stable, Easy to Use, Low External Parts Count
• Complies with Directive 2002/95/EC (RoHS)

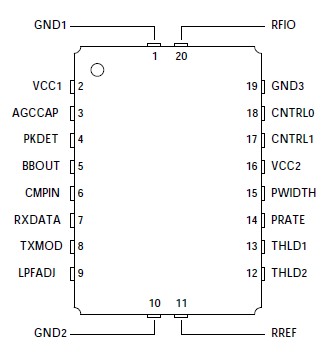

Pinout






Specifications

Characteristic Symbol Minimum Typical Maximum Units Operating Frequency fo 303.625 304.025 MHz Modulation Types OOK & ASK OOK Data Rate 30 kbps ASK Data Rate 115.2 kbps Receiver Performance High Sensitivity Mode Sensitivity 2.4 kbps 10-3 BER AM Test Method Method -109 dBm Sensitivity 2.4 kbps 10-3 BER Pulse Test -103 dBm Current 2.4 kbps (RPR = 330 K) 3.0 mA Sensitivity 19.2 kbps 10-3 BER AM Test Method -105 dBm Sensitivity 19.2 kbps 10-3 BER Pulse Test Method -99 dBm Current 19.2 kbps (RPR = 330 K) 3.1 mA Sensitivity 115.2 kbps 10-3 BER AM Test Method -101 dBm Sensitivity 115.2 kbps 10-3 BER Pulse Test Method -95 dBm Current 115.2 kbps 3.8 mA Receiver Performance Low Current Mode Sensitivity 2.4 kbps 10-3 BER AM Test Method -104 dBm Sensitivity 2.4 kbps 10-3 BER Pulse Test Method -98 dBm Current 2.4 kbps (RPR = 1100 K) 1.8 mA Receiver Out-of-Band Rejection 5% fo R5% 80 dB Receiver Ultimate Rejection RULT 100 dB




Description

TR3003 Designed for Short-Range Wireless Data Communications Supports RF Data Transmission Rates Up to 115.2 kbps 3 V, Low Current Operation plus Sleep Mode Stable, Easy to Use, Low External Parts Count Complies with Directive 2002/95/EC (RoHS)
