Product Details

Description



Features:

` Ultra low offset voltage: 60V max
` Rail-to rail input/output voltage swing
` Operating from 2.7V to 5.5V
` High-speed: 2.2MHz
` Low consumption: 0.85mA
` Supply voltage rejection ratio: 85dB
` ESD protection 2kV
` Latch-up immunity
` Available in SOT23-5 micropackage


Application

· Precision filters
· Transformer/line drivers
· Personal entertainments (CD players)
· Portable communication (cell phones, pagers)
· Instrumentation & sensoring

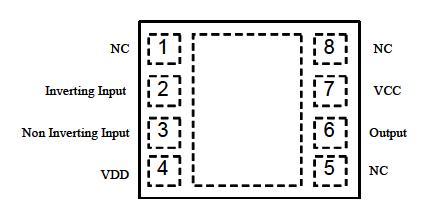

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1
6
V
Vid
 Differential Input Voltage 2
±5.5
V
Vin
 Input Voltage 3
Gnd to Vcc
V
Toper
 Operating Free Air Temperature Range
-40 to +125
Tstg
 Storage Temperature Range
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthjc
 Thermal Resistance Junction to Case 4
SOT23-5
SO8
DIP8
81
28
80
/W
Rthja
 Thermal Resistance Junction to Ambient - SOT23-5
256
/W
ESD
 Human Body Model
2
kV
 Lead Temperature (soldering, 10sec)
260
1) All voltage values, except differential voltage are with respect to network ground terminal.
2) Differential voltages are the non-inverting input terminal with respect to the inverting input t erminal.
3) The magnitude of input and output voltages must never exceed VCC +0.3V.
4) Short-circuits can cause excessive heating and destructive dissipation.


Description

The TS507 is a high performance rail-to-rail output amplifier with very low offset voltage. This amplifier uses a new trimming technique that yields ultra low offset voltages without any need for external nulling.

The circuit of the TS507 presents very stable electrical characteristics over the entire supply voltage range, and is particularly intended for professional nd telecom applications.

The TS507 is housed in the space-saving 5 pins SOT23 package that makes it well suited for battery-powered systems. This micropackage simplifies the PC board design because of it's ability to be placed in tight spaces (outside dimensions are: 2.8mm x 2.9mm)
