TS5A23167

Features: ` Isolation in Powered-Off Mode, V+ = 0` Low ON-State Resistance (0.9 )` Control Inputs Are 5.5-V Tolerant` Low Charge Injection` Low Total Harmonic Distortion (THD)` 1.65-V to 5.5-V Single-Supply Operation` Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II` ESD Performance Teste...

product image

TS5A23167 Picture
See larger image
SeekIC No. : 004528824 Detail

TS5A23167: Features: ` Isolation in Powered-Off Mode, V+ = 0` Low ON-State Resistance (0.9 )` Control Inputs Are 5.5-V Tolerant` Low Charge Injection` Low Total Harmonic Distortion (THD)` 1.65-V to 5.5-V Singl...

TS5A23167 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS5A23167
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Isolation in Powered-Off Mode, V+ = 0
` Low ON-State Resistance (0.9 )
` Control Inputs Are 5.5-V Tolerant
` Low Charge Injection
` Low Total Harmonic Distortion (THD)
` 1.65-V to 5.5-V Single-Supply Operation
` Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
` ESD Performance Tested Per JESD 22
   2000-V Human-Body Model(A114-B, Class II)
   1000-V Charged-Device Model (C101)



Application

· Cell Phones
· PDAs
· Portable Instrumentation
· Audio and Video Signal Routing
· Low-Voltage Data Acquisition Systems
· Communication Circuits
· Modems
· Hard Drives
· Computer Peripherals
· Wireless Terminals and Peripherals


Pinout

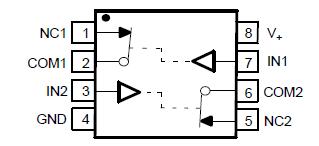

Connection Diagram


Specifications


MIN
MAX
UNIT
V+
Supply voltage range(3)
-0.5
6.5
V
VNC
VCOM
 Analog voltage range(3) (4) (5)
-0.5
V+ + 0.5
V
IK
 Analog port diode current VNC, VCOM < 0
-50
mA
INC
ICOM
 On-state switch current VNC, VCOM = 0 to V+
-200
200
mA
On-state peak switch current(6)
-400
400
VI
 Digital input voltage range(3) (4)
-0.5
6.5
V
IIK
 Digital input clamp current VI < 0
-50
mA
I+
 Continuous current through V+
100
mA
IGND
 Continuous current through GND
-100
100
mA
JA
 Package thermal impedance(7) DCK package
220
/W
DCU package
227
YEA/YZA package
140
YEP/YZP package
102
Tstg
 Storage temperature range
-65
150
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device.
     These are stress ratings only, and functional operation of the device at these or any other conditions beyond
     those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated
     conditions for extended periods may affect device reliability.
(2) The algebraic convention, whereby the most negative value is a minimum and the most positive value is a maximum
(3) All voltages are with respect to ground, unless otherwise specified.
(4) The input and output voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
(5) This value is limited to 5.5 V maximum.
(6) Pulse at 1-ms duration < 10% duty cycle.
(7) The package thermal impedance is calculated in accordance with JESD 51-7.


Description

The TS5A23167 is a dual single-pole single-throw (SPST) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
