TS613ID

Operating Supply Voltage :
Output Current :
Common Mode Rejection Ratio (Min) : 90 dB
Mounting Style : SMD/SMT
Number of Channels : 2
Packaging : Tube
Input Offset Voltage : 6 mV
Package / Case : SO-8
Shutdown : No
Maximum Operating Temperature : + 85 C
Slew Rate : 40 V/us
Input Bias Current (Max) : 15 uA


Features:

· LOW NOISE : 3nV//Hz, 1.2pA//Hz
· HIGH OUTPUT CURRENT : 200mA
· VERY LOW HARMONIC AND INTERMODULATION DISTORTION
· HIGH SLEW RATE : 40V/ms
· SPECIFIED FOR 25W LOAD


Application

 UPSTREAM line driver for Assymetric Digital Subscriber Line (ADSL) (NT).

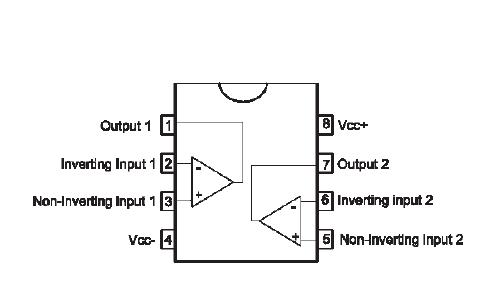

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply voltage 1)	±7	V
Vid	Differential Input Voltage 2)	±2	V
Vin	Input Voltage Range 3)	±6	V
Toper	Operating Free Air Temperature Range TS612ID	-40 to + 85	°C
Tstd	Storage Temperature	-65 to +150	°C
Tj	Maximum Junction Temperature	150	°C
Rthjc	Thermal Resistance Junction to Case	28	°C/W
Rtha	Thermal Resistance Junction to Ambient Area	175	°C/W
Pmax.	Maximum Power Dissipation (@25°C)	715	mW
	Output Short Circuit Duration	4)

1. All voltages values, except differential voltage are with respect to network terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC +0.3V.
4. An output current limitation protects the circuit from transient currents. Short-circuits can cause excessive heating.
  Destructive dissipation can result from short circuit on amplifiers.


Description

The TS613ID is a dual operational amplifier featuring a high output current (200mA min.), large gain-bandwidth product (130MHz) and capable of driving a 25W load with a 160mA output current at ±6V power supply.

This TS613ID is particularly intended for applications where multiple carriers must be amplified simultaneously with very low intermodulation products. The TS613 is housed in a SO8 package.

Parameters:

Technical/Catalog Information	TS613ID
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	Voltage Feedback
Number of Circuits	2 - Dual
Package / Case	8-SOIC (3.9mm Width)
Slew Rate	40 V/s
Gain Bandwidth Product	130MHz
Current - Supply	11mA
Current - Output / Channel	320mA
Voltage - Supply, Single/Dual (±)	5 V ~ 12 V, ±2.5 V ~ 6 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	5A
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	1000V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
