TS616

Features: ` LOW NOISE : 2.5nV Hz ` HIGH OUTPUT CURRENT : 420mA` VERY LOW HARMONIC AND INTERMODULATION DISTORTION` HIGH SLEW RATE : 420V/ms` -3dB BANDWIDTH : 40MHz@gain=12dB on 25W load single ended.` 20.7Vp-p DIFFERENTIAL OUTPUT SWING on 50W load, 12V power supply` CURRENT FEEDBACK STRUCTURE` 5V t...

product image

TS616 Picture
See larger image
SeekIC No. : 004528854 Detail

TS616: Features: ` LOW NOISE : 2.5nV Hz ` HIGH OUTPUT CURRENT : 420mA` VERY LOW HARMONIC AND INTERMODULATION DISTORTION` HIGH SLEW RATE : 420V/ms` -3dB BANDWIDTH : 40MHz@gain=12dB on 25W load single ended....

TS616 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TS616
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` LOW NOISE : 2.5nV Hz
` HIGH OUTPUT CURRENT : 420mA
` VERY LOW HARMONIC AND INTERMODULATION DISTORTION
` HIGH SLEW RATE : 420V/ms
` -3dB BANDWIDTH : 40MHz@gain=12dB on 25W load single ended.
` 20.7Vp-p DIFFERENTIAL OUTPUT SWING on 50W load, 12V power supply
` CURRENT FEEDBACK STRUCTURE
` 5V to 12V POWER SUPPLY
` SPECIFIED FOR 20W and 50W DIFFERENTIAL LOAD


Application

· Line driver for xDSL
· Multiple Video Line Driver

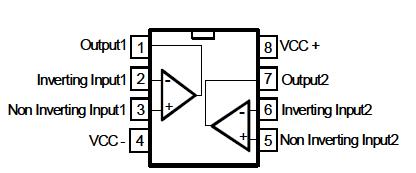

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
±7
V
Vid
 Differential Input Voltage 2)
±2
V
Vin
 Input Voltage Range 3)
±6
V
Toper
 Operating Free Air Temperature Range
-40 to + 85
°C
Tstd
 Storage Temperature
-65 to +150
°C
Tj
 Maximum Junction Temperature
150
°C
Rthjc
 Thermal Resistance Junction to Case
16
°C/W
Rthjc
 Thermal Resistance Junction to Ambient Area
60
°C/W
Pmax.
 Maximum Power Dissipation (@Ta=25°C) for Tj=150°C
2
W
ESD
only pins
1, 4, 7, 8
 CDM : Charged Device Model
HBM : Human Body Model
MM : Machine Model
1.5
2
200
kV
kV
V
ESD
only pins
2, 3, 5, 6
 CDM : Charged Device Model
HBM : Human Body Model
MM : Machine Model
1.5
2
100
kV
kV
V
  Output Short Circuit
4)
1. All voltage values, except differential voltage are with respect to network terminal.
2. Differential voltage are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltage must never exceed VCC +0.3V.
4. An output current limitation protects the circuit from transient currents. Short-circuits can cause excessive heating.
    Destructive dissipation can result from short circuit on amplifiers.


Description

The TS616 is a dual operational amplifier featuring a high output current of 410mA. The drivers can be configured differentially for driving signals in elecommunication systems using multiple carriers. The TS616 is ideally suited for xDSL (High Speed Asymmetrical Digital Subscriber Line) applications. This circuit is capable of driving a 10 or 25W load at ±2.5V, 5V, ±6V or +12V power supply. The TS616 is able to reach a -3dB bandwidth of 40MHz on 25 load with a 12dB gain.This device is designed for high slew rates supporting low harmonic distortion and intermodulation.
