Part Number: TS902



MFG: SGS

Package Cooled: STK

D/C: 2002+

Description: The TS902 is a RAIL TO RAIL dual CMOS operational amplifier designed to operate with single or dual supply voltage....


Urgent Purchase

TS902 General Description


The TS902 is a RAIL TO RAIL dual CMOS operational amplifier designed to operate with single or dual supply voltage.

The input voltage range Vicm includes the two supply rails VCC + and VCC -The output reaches (VCC = 5V) :
• VCC - +50mV VCC + -50mV with RL = 10kW
• VCC - +350mV VCC + -400mV with RL = 600W

This product offers a broad supply voltage operating range from 2.7V to 16V and a supply current of only 200mA/amp. (VCC = 3V).

Source and sink output current capability is typically 40mA (at VCC = 3V), fixed by an internal limitation circuit.

The TS902 can be put on STANDBY position (only 0.5mA and high impedance outputs).

STMicroelectronics is offering a quad op-amp with the same features : TS904.

TS902 Maximum Ratings

Symbol
 Parameter
Value
Unit
VCC
 Supply Voltage - (note 1)
18
V
Vid
 Differential Input Voltage - (note 2)
±18
V
Vi
 Input Voltage - (note 3)
-0.3 to 18
V
Iin
 Current on Inputs
±50
mA
Io
 Current on Outputs
±130
mA
Toper
 Operating Free Air Temperature Range
TS902I/AI
-40 to +125
Tstg
 Storage Temperature
-65 to +150
Notes :
1. All voltage values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC + +0.3V.

TS902 Features

`RAIL TO RAIL INPUT AND OUTPUT .VOLTAGERANGES
`STANDBY POSITION : REDUCED CONSUMPTION (0.5mA) AND HIGH IMPEDANCE .OUTPUTS
`SINGLE (OR DUAL) SUPPLY OPERATION .FROM 2.7V TO 16V
`EXTREMELYLOWINPUT BIAS CURRENT :.1pA TYP .
`SPECIFIED FOR 600 AND 100W
`LOADS LOW SUPPLYCURRENT : 200mA/Ampli

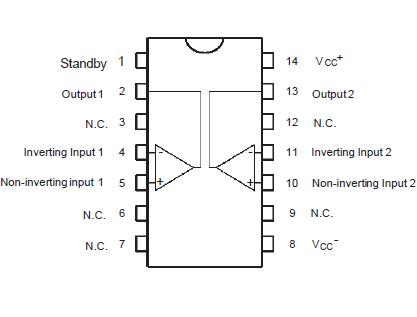

TS902 Connection Diagram

TS902 Connection Diagram
